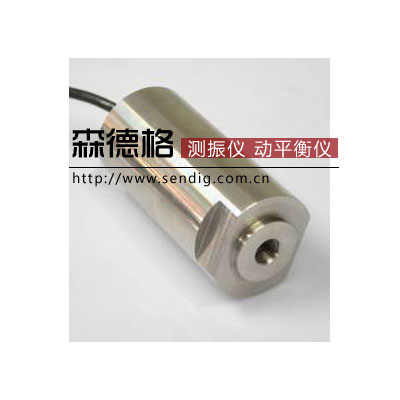

Sendig SS-430 Stress Energy Transmitter

Specifications

Measurement Range: 0-10 SEL (stress energy level units)

Frequency Response: 7kHz to 50 kHz

Grounding: Base isolated

Axis Orientation: Any

Transverse Sensitivity: Less than 5%

Electrical

Output Current: 4-20 mA DC proportional to 0-10 SEL (stress energy)

Supply Voltage: 15 - 30 Volts DC (for 4-20 mA)

Settling Time: 2 seconds

Output Impedance: Loop Resistance 600 Ohms max. at 24 Volts

Grounding: Case Isolated

Environmental

Sensor Temperature Range: -40 to +85oc

Sealing: IP68

Maximum Shock: 5000 g

Emissions: EN61000-6-4:2007

Immunity: EN61000-6-2 :2005 CE

Electromagnetic Sensitivity: CE

Mechanicil

Case Material: Stainless Steel

Sealing: Hermetically Sealed

Mounting Threads: 3/8 - 24 UNF (MS Optional)

Mounting Torque: 8 Nm

Size: 40 x 100 mm

Weight: 410 gms(nominal)

Cable: 1 m x 2-conductor shielded
