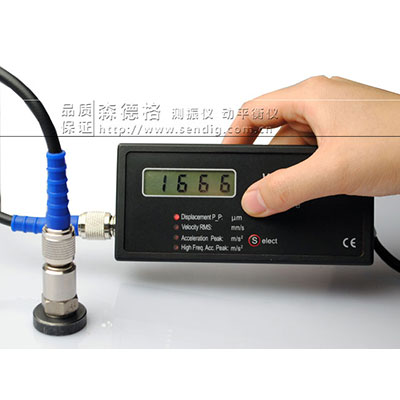

SENDIG S908L Low Frequency Vibration meter

Specifications

★Amplitude Ranges:

Displacement 0.01-19.99 mm Eq. peak-peak

Velocity 0.1-199.9 mm/s true RMS

Acceleration 0.1-199.9 m/s2 or 20g Eq.Peak

★High Frequency Acceleration: 0.1-199.9 m/s2 Eq. Peak

★Temperature range: 0-50oC

★Frequency response & Accuracy:

Displacement: 4-500Hz(±5%); 2.5-4Hz(±10%); 1-1000Hz(3dB)

Velocity: 4-1000Hz(±5%); 2.5-4Hz(±10%); 1-2000Hz(3dB)

Acceleration: 4-1000Hz(±5%); 2.5-5000Hz(±10%); 1-10000Hz(3dB)

High Frequency Acceleration: 1000-5000Hz(±10%);5000-10000Hz(3dB)

★Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.

★Pickup: Accelerometer with handheld probe and/or magnetic mount

★Dimensions: 13×6×2.3cm; Weight: 200g

★Optional Intrinsically safe version with internal accelerometer
