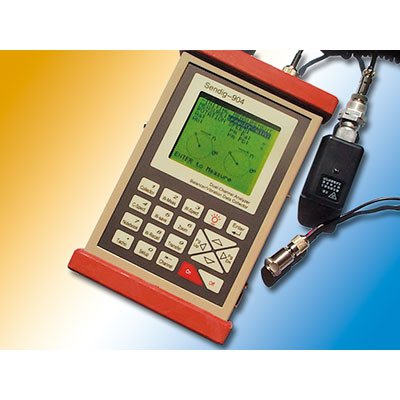

SENDIG S904D Dual-channel Machinery Analyzer/Data Collector

Specifications

·Input signal: accelerometer and voltage, 2 channels

·Amplitude ranges & Frequency Response of overall measurement:

Displacement: 0.001 – 5 mm peak-peak; 10 - 500 Hz

Velocity: 0.1 - 200mm/s true RMS; 10 - 1000 Hz

Acceleration: 0.1 - 250m/s2 peak; 10 - 10000 Hz

Acceleration Envelope: 0.1 - 20m/s2 true RMS; 5-2000Hz from 15-40 KHz

Voltage: 0.1 - 10V peak-peak; 0.5 - 10000 Hz

·Amplitude spectrum analysis: 100 and 400 Lines, hanning windowed

·Frequency span of spectrum analysis: 100, 200, 500, 1k, 2k, 5k, 10kHz(1 channel only)

·Data storage: 62 1024-points time waveforms and 240 data sets

·Notepad: 10 condition codes for visual inspection

·Output: RS232C for communication with PC

·Power: Ni-MH rechargeable battery for 8 hours continuous operation, low battery voltage warning

·Operating Environment: 0~50 Celsius degree, 90% humidity non-condensing

·Rotating speed measurement range(with laser-aimed tacho sensor):180-24000 r/min

·Rotating speed range for balancing:60-8000 r/min

·Gain adjustment: both automatic-adjustment or manual- adjustment selectable

·Anti-aliasing filter: 8th order elliptic low-pass

·Dimensions: 21×13×4 cm; weight: 1.2 kg
