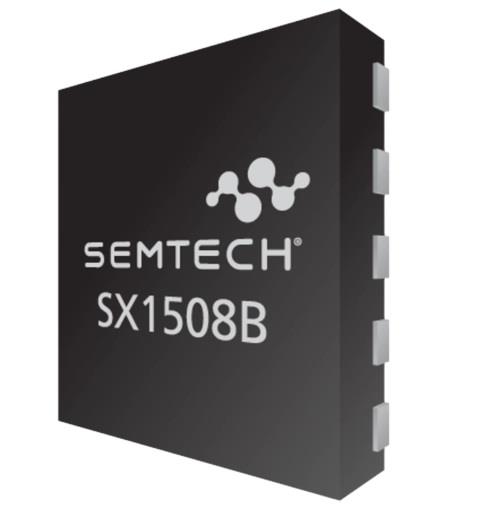

Semtech SX1508BIULTRT GPIO Expander 8 CHAN LOW VOLT I2C GPIO + PWM

Features: Power-On Reset and Reset Input (NRESET)

Output Type: Open Drain, Push Pull

Unit Weight: 123 mg

ESD Protection: 2 kV

Interface Type: I2C, Serial

Mounting Style: SMD/SMT

Number of I/Os: 8 I/O

Output Current: 8 mA, 15 mA

Development Kit: SX1508BEVK

Interrupt Output: With Interrupt

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.2 V

Maximum Clock Frequency: 2 MHz

Operating Supply Current: 175 uA

Operating Supply Voltage: 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
