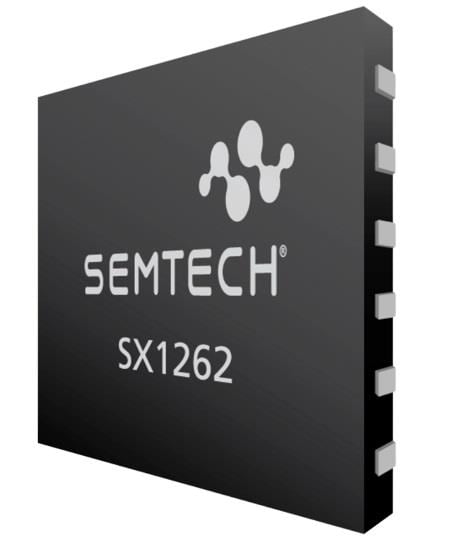

Semtech SX1262IMLTRT Sub-GHz LoRa, sub-GHz 22dBm PA
ManufacturerSemtech(View more products from this manufacturer)
ModelSX1262IMLTRT
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Sensitivity: - 125 dBm
Unit Weight: 1.430 g
Output Power: 22 dBm
Interface Type: SPI
Mounting Style: SMD/SMT
Development Kit: SX1262DVK1CAS
Frequency Range: 150 MHz to 960 MHz
Maximum Data Rate: 300 kbps
Modulation Format: 2-FSK, FSK, GFSK, LoRa
Number of Receivers: 1 Receiver
Supply Voltage - Max: 3.7 V
Supply Voltage - Min: 1.8 V
Number of Transmitters: 1 Transmitter
Supply Current Receiving: 8 mA
Supply Current Transmitting: 25.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
