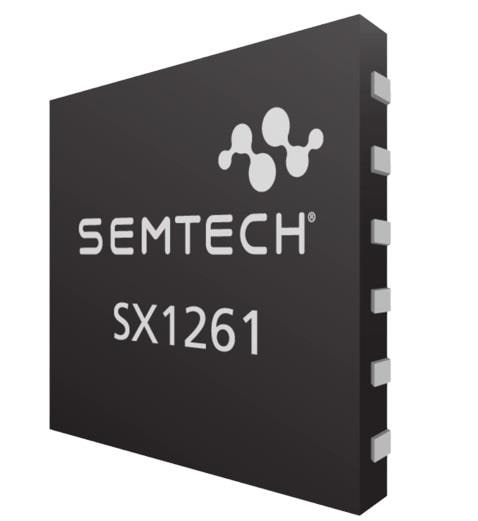

Semtech SX1261IMLTRT Sub-GHz LoRa, Low Power sub- GHz

Technology: Si

Sensitivity: - 125 dBm

Unit Weight: 168.617 mg

Output Power: 15 dBm

Interface Type: SPI

Mounting Style: SMD/SMT

Frequency Range: 150 MHz to 960 MHz

Maximum Data Rate: 300 kbps

Modulation Format: 2-FSK, FSK, GFSK, LoRa

Number of Receivers: 1 Receiver

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 1.8 V

Number of Transmitters: 1 Transmitter

Supply Current Receiving: 8 mA

Supply Current Transmitting: 25.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
