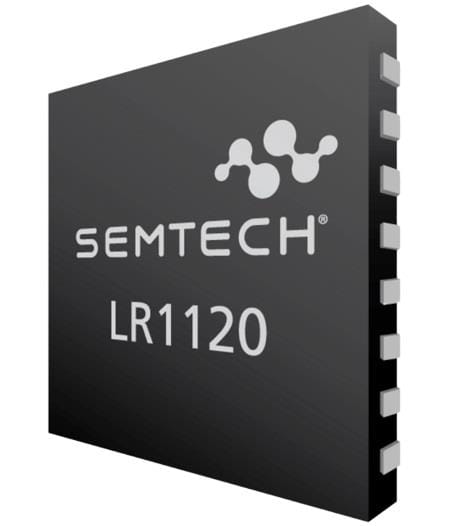

Semtech LR1120IMLTRT Wi-Fi PN with GTK Cu wire pkg and CSM test

Technology: Si

Output Power: 22 dBm

Interface Type: SPI

Mounting Style: SMD/SMT

Frequency Range: 150 MHz to 960 MHz, 150 MHz to 2.5 GHz, 2.412 GHz to 2.484 GHz, 2.4 GHz to 2.5 GHz

Maximum Data Rate: 43.3 Mbps

Modulation Format: 16-QAM, BPSK, FSK, GFSK, QPSK

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 1.8 V

Number of Transmitters: 2 Transmitter

Operating Supply Voltage: 1.8 V to 3.7 V

Supply Current Receiving: 8.3 mA

Supply Current Transmitting: 118 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
