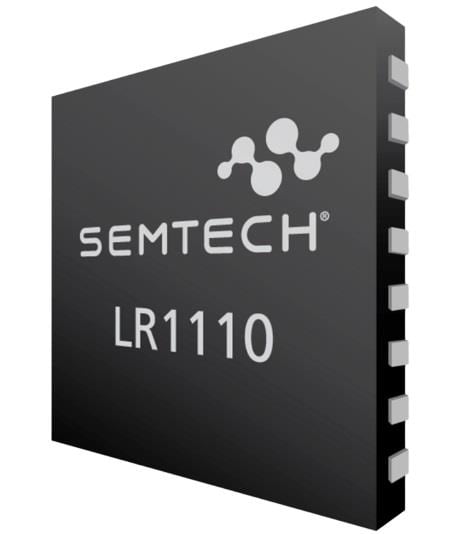

Semtech LR1110IMLTRT FSK LONG RANGE WI-FI LOC LORA TRANSCEIVER

Technology: Si

Unit Weight: 1.430 g

Output Power: 15 dBm, 22 dBm

Mounting Style: SMD/SMT

Frequency Range: 150 MHz to 960 MHz, 150 MHz to 2.7 GHz

Maximum Data Rate: 2 Mbps

Number of Receivers: 4 Receiver

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 1.8 V

Number of Transmitters: 2 Transmitter

Operating Supply Voltage: 3.7 V

Supply Current Receiving: 7.8 mA

Supply Current Transmitting: 118 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
