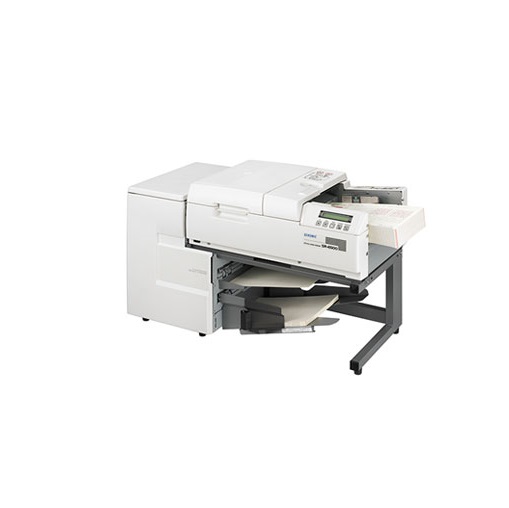

SEKONIC SR-6500 Optical Mark Reader (48 x 109)

Main functions

Reading Speed (per hour): 5,500 pages

Input Process: ADF / Hand Feed (Adjusted by Operaton mode)

Form Input: 500 forms

Form Output: 500 forms (accepts) / 150 forms (rejects)

Mark writing implements: Pencil (infra-ed ray) / Pen (Visible red ray-Option)

Read Technique: Reading reflective sensor

Number of read head: 1 (Standard) or 2 (Option)

Mark Discrimination: 256 degrees (16 steps of discrimination)

Calibration: Automatic

Mark Shapes: Rectangle, Ovals, and Circles,

Connect with PC (Interface)

Communication Interface: USB 2.0 / RS-232C serial interface

Baud rate (Only RC-232C mode): 9,600 to 115,200 bits / second

Forms

Paper Thickness: 72kg-135kg (84g/m²-157g/m²)

Paper Size: 63.5 x 110 to 228.6 x 355.6 (mm) / 2.5 x 4.33 to 9 x 14 (inch)

Mark Position: 5,323 mark positions (per each page)

Maximum Scan Area: 48 x 109

Operating conditions

Temperature: 5-35°C (41-95°F)

Relative Humidity: 30-80%

Power requirements

Noise: 65db

Dimensions (W x H xD mm): 365 x 490 x 800 (mm) with stacker

Weight: 36 kg

Optional functions

Backside Reading: Option

Select Stacker: Standard

Printer: Standard

Barcode Reader (Horizontal): JAN/EAN/UPC/NW7/ITF/CODE39/EAN128/CODE93

Barcode Reader (Vertical): JAN/EAN/UPC/NW7/ITF/CODE39/INDUSTRIAL2OF5/COOP2OF5

Pen & Pencil Reading: Option (Black and Blue Ball-Point-Pen)

Utility Software: "Markview"
