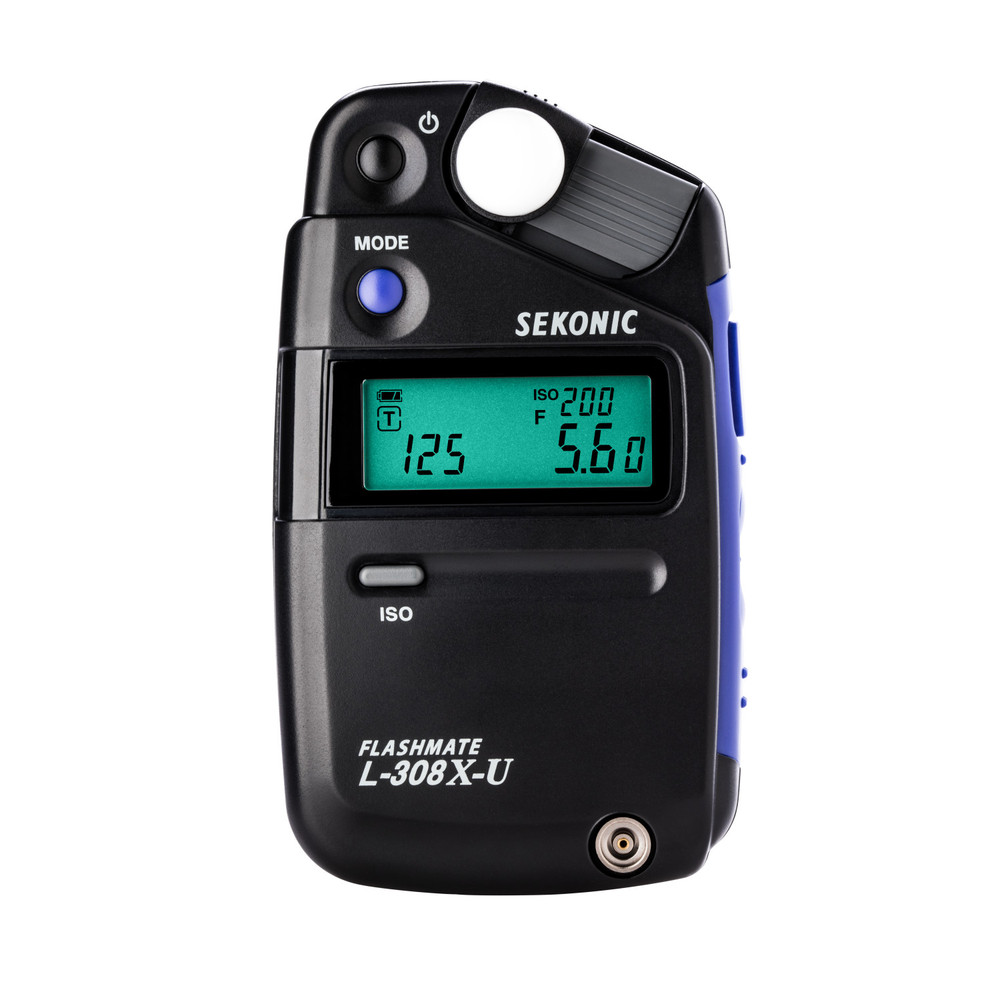

SEKONIC L-308X-U FLASHMATE Light Meter

Sensor: SPD

Measuring System:

Exposure Meter

Incident light: fixed head, lumidisc removable (Option)

Reflected light: Switching, 40 deg. with built-in lens

Measuring Range and Modes:

Measuring Modes (Ambient Light): T priority, F priority, EV, HD_CINE (T priority), CINE (f/s priority), Lux/FC

Measuring Modes (Flash light): Cordless, Cord-in (PC)

Measuring Range at ISO100 (Ambient Incident Light):

EV0 to EV19.9

2.50 lx to 190,000 lx

0.23 fc to 17,000 fc

Measuring Range ISO100 (Ambient Reflected Light): EV0 to EV19.9

Measuring Range (Flash Incident Light): F1.0 to F90.9

Measuring Range (Flash Reflected Light): F1.0 to F90.9

ISO Range: ISO 3 to ISO 8,000 plus ISO 850

Aperture Range (Ambient Light): F0.5 to F90.9 in 1, 1/2, 1/3 step

Aperture Range (Flash Light): F0.5 to F90.9 in 1, 1/2, 1/3 step

Shutter Speeds Range (Ambient Light):

Photo Mode: 60s to 1/8,000s

HD_CINE Mode: 1/8s to 1/8,000s in 1, 1/2, 1/3 step

Shutter Speeds Range (Flash Light): 1s to 1/500s in 1, 1/2, 1/3 step

Frame Rate Range (Ambient Light): 8, 12, 16, 18, 24, 25, 30, 32, 48, 50, 60, 64, 96, 100, 120, 128

Shutter Angles Range (Ambient Light):

CINE Mode: 45, 90, 180, 270, 360 deg.

EV Range (Ambient Light): EV-6 to EV27.2

Calibration Compensation: Yes (-1.0EV to +1.0EV)

Custom Settings: Yes (3 custom settings)

Physical:

Operating Temperature: 0 deg. C to 40 deg. C

Storage Temperature: -20 deg. C to 60 deg. C

Power Source: 1.5V x 1 (AA battery)

LCD: B&W, Segment type

LCD Backlight: Yes (under EV5)

Product Weight (lb): 0.21

Product Weight (kg): 0.1

Product Height (in): 0.87

Product Length (in): 4.33

Product Width (in): 2.48

Product Height (cm): 2.2

Product Length (cm): 11

Product Width (cm): 6.3
