SEKONIC FEM-1000V-EX Flameproof Inline Viscometer (L, M, H, 0.50~20000mPa.s)

Flameproof

Probe: Exd II CT6

Slave / controller: Exd II BT6

Viscosity Measuring Range / Accuracy / Repeatability

L range: 0.50～1000mPa・s / ±1%(Reading) / ±1%(Reading)

M range: 10.0～5000mPa・s / ±1%(Reading) / ±1%(Reading)

H range: 500～20000mPa・s / ±1%(Reading) / ±1%(Reading)

Measuring fluid temperature range: 0～70℃

Temperature Range: 0～100℃

Calibrating method: Calibration with Standard Liquids for Calibrating Viscometers (JIS Z8809-2011)

Output: Viscosity and temperature each 4~20mA any setting output

(output resolution 16bit) And RS232C interface output

System requirements: 10～40°C, 20～80%RH(No Condensation)

Power: DC24V

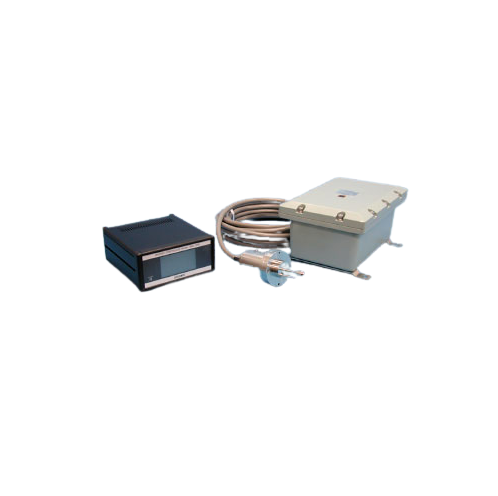

Equipment configuration

Probe Model: FVM80A-PEXG

Controller model: FEM-1000-EXSC (slave controller) / SMC-1000V (master controller)

Other: Cable connected to probe L = 5m; Three flameproof gasket 3pieces
