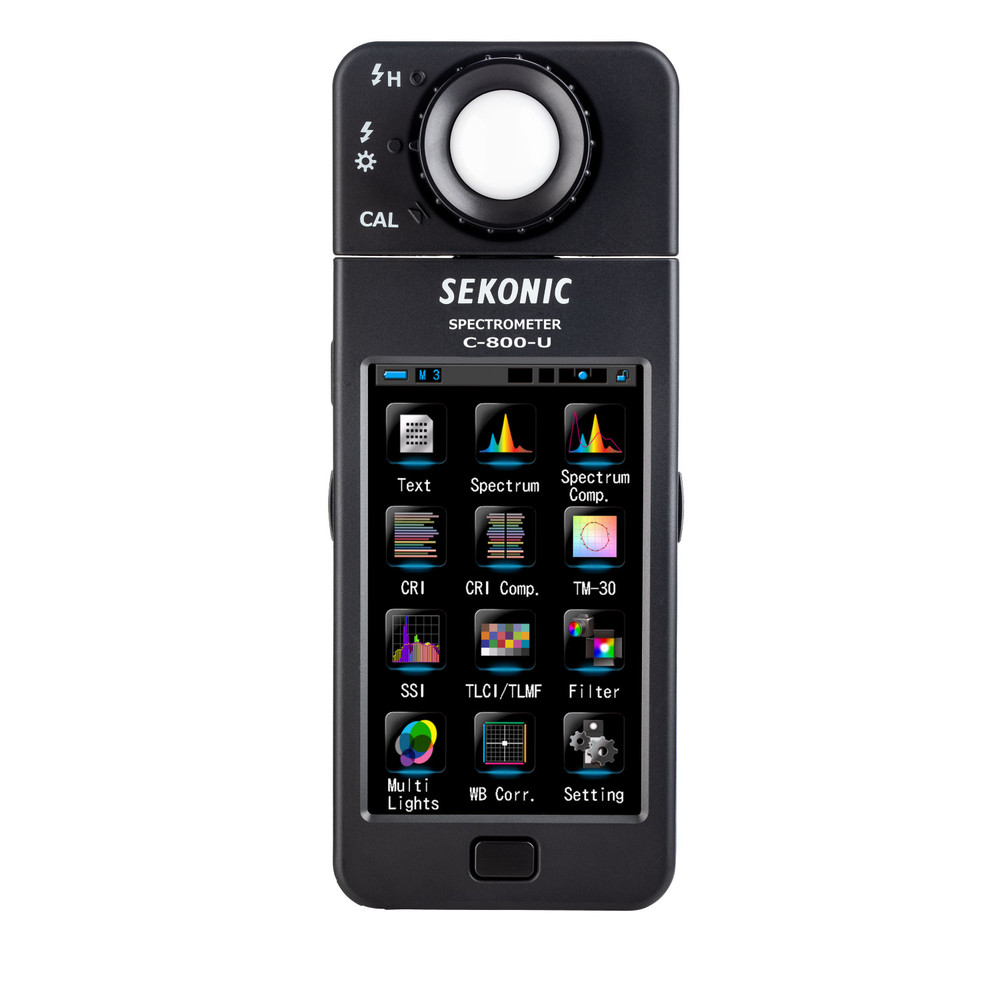

SEKONIC C-800-U Spectrometer (1 lx ~ 200,000 lx)

Sensor: CMOS linear image sensor

Measuring System: Spectro Meter

Incident light: Swivel head

Measuring Range and Modes:

Measuring Modes (Ambient Light): Ambient light

Measuring Modes (Flash light): Cordless, Cord-in (PC)

Measuring Range at ISO100 (Ambient Incident Light):

1 lx to 200,000 lx *

0.09 fc to 18,600 fc

Measuring Range (Flash Incident Light):

20 lx・s to 20,500lx・s

1.86 fc・s to 1,900 fc・s

Spectral Wavelength Range: 380nm to 780nm

Color Measuring Mode (Display Mode): Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode

Color Measuring Range (Ambient Light): 1,600 to 40,000K

Color Measuring Range (Flash Light): 2,500 to 40,000K

Color Measuring Units (Color Parameters):

Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation,

Color Measuring Units (Color Rendering Properties):

CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units (Photo/Cinematography):

LB/CC filter number (camera/lighting filter), LB/CC index, CC number,

Target Color Temperature Range: 2,500K to 10,000K

Shutter Speeds Range (Ambient Light): Auto - Max.: 15 sec., Min.: 0.5 sec.

Shutter Speeds Range (Flash Light): 1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

Memory: Yes (99 times)

Contrast/Comparison Function: Yes

Custom Settings: Yes (12 custom settings

Physical:

Tripod Socket: Yes

Operating Temperature: -10 deg. C to 40 deg. C

Storage Temperature: -10 deg. C to 60 deg. C

Power Source: 1.5V x 2 (AA battery), USB bus-power

LCD: 4.3" color dot matrix touch panel LCD

LCD Backlight: Yes
