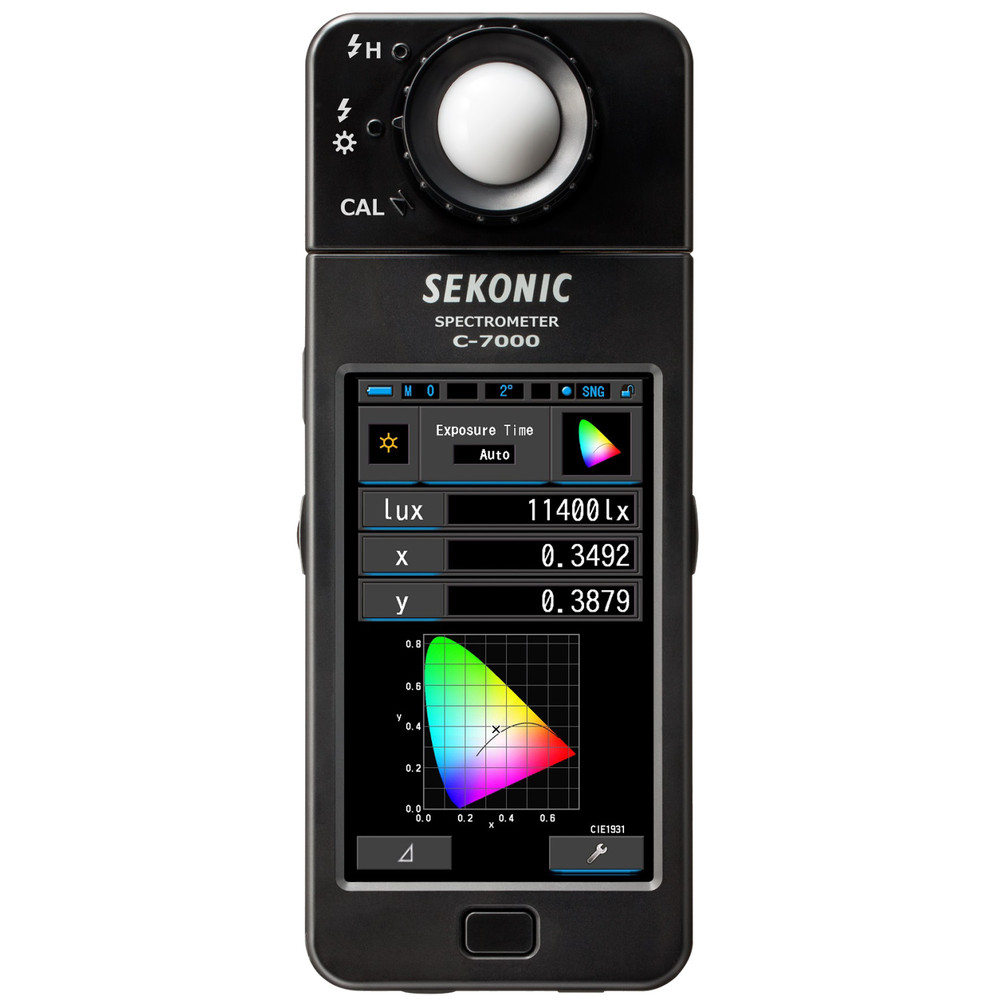

SEKONIC C-7000 Spectrometer (1 lx ~ 200,000 lx)

Sensor:CMOS linear image sensor

Measuring System:Spectro Meter

Incident light: Swivel head

Measuring Range and Modes:

Measuring Modes (Ambient Light):Ambient light

Measuring Modes (Flash light):Cordless, Cord-in (PC)

Measuring Range at ISO100 (Ambient Incident Light):

1 lx to 200,000 lx

0.1 fc to 18,600 fc

Measuring Range (Flash Incident Light):

20 lx・s to 20,500lx・s

1.86 fc・s to 1,900 fc・s

Spectral Wavelength Range: 380nm to 780nm

Color Measuring Mode (Display Mode): Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CRI Comparison mode, TM-30-18 mode, SSI mode, TLCI/TLMF mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode

Color Measuring Range (Ambient Light): 1,563 to 100,000K

Color Measuring Range (Flash Light): 2,500 to 100,000K

Color Measuring Units (Color Parameters): Correlated Color Temperature (Tcp),Deviation (⊿uv ), Tristimulus value (XYZ / X10Y10Z10), CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 ),

Color Measuring Units (Color Rendering Properties): CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units (Industrial): Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,

Color Measuring Units (Photo/Cinematography): Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,

Shutter Speeds Range (Ambient Light):

Auto - Max.: 15 sec., Min.: 0.5 sec.

Manual - 0.1s, 1sec.

Shutter Speeds Range (Flash Light):1 to 1/500 sec. (in 1 step)

Memory:Yes (999 times)

Contrast/Comparison Function:Yes

Custom Settings:Yes (5 custom settings)

Measuring Data Output:

Memorized value with graphic

Spectral irradiance from 380nm to 780nm in 1 and 5 nm increments

Physical:

Tripod Socket:Yes

Operating Temperature:-10 deg. C to 40 deg. C

Storage Temperature:-10 deg. C to 60 deg. C

Power Source:1.5V x 2 (AA battery), USB bus-power

LCD:4.3" color dot matrix touch panel LCD

LCD Backlight:Yes
