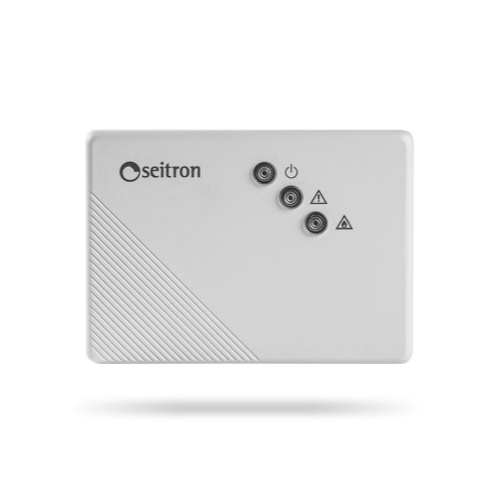

Seitron SGAGPL Remote Gas Leak Detection Sensor (LPG, 5% ~ 20% L.E.L.)

Power supply: 6V= .. 12V=.. from detector

Power absorption: 1VA

Output: Voltage output

Sensor type: SnO2 semiconductor

Sensor life: 5 years

Detectable gas: LPG

Alarm threshold: 5% .. 20% L.E.L.

Protection grade: IP 30

Operating temperature: 0°C .. 40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 20% .. 80% rH (non condensing)

Case:

Material: ABS V0 self-extinguishing

Color: Signal white (RAL 9003)

Size: 90 x 65 x 30 mm (W x H x D)

Weight: ~ 99.5 gr.

Manual
