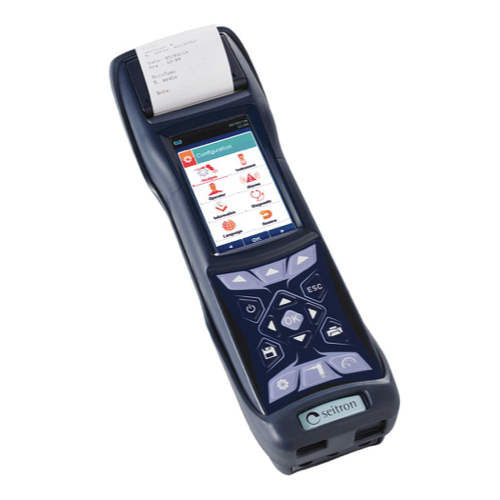

Seitron S1500-P Portable Combustion Analyzer (O₂, CO, CO₂)

O₂ (Long Life): Range: 0 .. 25.0% vol - Resolution: 0.1% vol

CO Sensor with Over-Range Protection: Range: 0 .. 500 ppm - Resolution: 0.1 ppm

CO₂ (Calculated): Range: 0 .. 99.9% vol - Resolution: 0.1% vol

Air Temperature: Range: -4.0 .. 2282.0 °F - Resolution: 32.18 °F

Stack Temperature: Range: -4.0 .. 2282.0 °F - Resolution: 32.18 °F

Pressure: Range: -40.1 .. +80.4 inH2O - Resolution: 0.004 inH₂O

Differential Temperature (Calculated): Range: 32.0 .. 2282.0 °F

Air Index (Calculated): Range: 0.00 .. 9.50 - Resolution: 0.01

Excess Air (Calculated): Range: 0 .. 850% - Resolution: 1%

Stack Losses (Calculated): Range: 0.0 .. 100.0% - Resolution: 0.1%

Efficiency (Calculated): Range: 0.0 .. 100.0% - Resolution: 0.1%

Dimensions: 12.20'' H x 3.54'' W x 2.36'' D

Weight: 1.98 lbs

All In One Kit

Analyzer w/ O₂, CO, CO₂,

Efficiency, Excess Air, Draft, Pressure, Temp

Rechargeable Battery & AC Plug

12” (300mm) Probe with 5’ (1.5m) Dual hose

ABS Case, Calibration Certificate

Operating Manual

Cheat Sheet

Water Trap

Paper Roll

2000 Internal Data Storage

PC Software

Bluetooth TM Connectivity

Differential Pressure Manometer Kit (1 Hose)

Automatic Outdoor Air Temperature Saving for ALL 90%+ Systems & Condensing Systems for TRUE Efficiency Calculations + iOS and Android App lncluded

Manual
