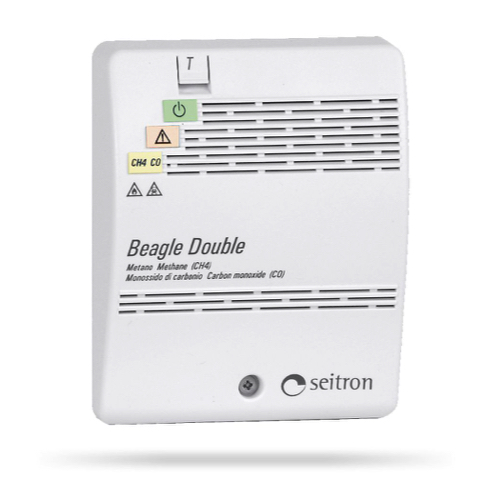

Seitron RGDCM0MP1 Methane And CO Gas Leakage Detector Beagle Double (CH4, CO, 1.5VA)

Power supply: 230V~ -15% +10% 50Hz

Electrical power: 1.5VA

Sensor type: SnO2 semiconductor

Gases detected: Natural gas (CH4)

Carbon monoxide (CO)

Trip threshold: 20% L.E.L. (CH4)

80 ppm (CO)

Output 1: Relay 5A@250V~ SPDT

Indications: Green LED lit: Detector ON

Yellow LED lit: Fault

Red light lit: CH4 alarm

Blue light lit: CO alarm

Red/blue alternately: CH4 + CO alarm

Buzzer: Alarm, after ~ 60 seconds

Activation time: ~ 40 seconds

Relay delay time: ~ 60 seconds

Sensor life: 5 years

Operating temp.: 0°C .. 40°C

Storage temp.: -10°C .. +50°C

Humidity limits: 20% .. 80% RH non-condensing

Protection rating: IP 42

Enclosure: Material: ABS V0, self-extinguishing

Colour: Signal white (RAL 9003)

Dimensions: 85 x 107 x 38 mm (W x H x D)

Weight: ~ 260 g
