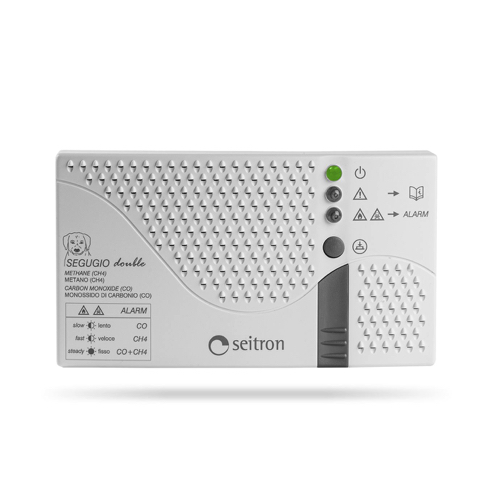

Seitron RDXSM1 Residential Gas Leak Detector Segugio Plus Double (CH4, CO, 6VA)

Power supply: 230V~ ±10% 50Hz

Maximum power absorption: 6VA

Detected gas: Methane (CH4), Carbon Monoxide (CO)

Trip threshold:

Methane: 10% L.I.E.

CO: Accumulation according to EN 50291-1

Sensor type:

Methane (CH4): Semiconductor SnO2, Replaceable

CO: Replaceable electrochemical sensor

Contacts rating (CH4): 5 (2) A 250V~ SPDT

Contacts rating (CO): 5 (2) A 250V~ SPDT

Indicators: Operation: Green led

Alarm: Red led

Fail: Yellow led

Alarm: Buzzer

Activation delay: ~ 1 minuto

Relay activation delay: ~ 30 seconds

Sensor lifetime: 5 years

Protection grade: IP 42

Operating temperature: 0°C .. 40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 20% .. 80% RH (non condensing)

Case: Material: ABS V0 self-extinguishing

Color: Cover: Signal white (RAL 9003)

Details: Mouse grey (RAL 7005)

Size: 148x84x40 mm (W x H x D)

Weight: ~ 425 gr.
