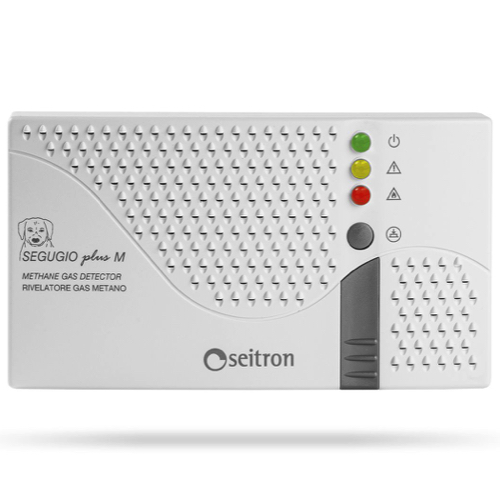

Seitron DDMSM1 Residential Gas Leak Detector Segugio Wireless (Methane, 6VA)

Power supply: 230V~ 50/60 Hz

Power absorption: 6VA

Sensor type: Semiconductor SnO2, replaceable

Detected gas: Methane

Calibration threshold: 10% L.I.E.

Contact ratings: 6(2)A250V~ SPDT

Frequency: 868.150 MHz

Modulation: GFSK

Max. RF power transmitted: 1 mW

Bandwidth (-3 dB): 100 KHz

Antenna type: Internal stylus

Max. distance from the receiver:

>300 m in free air

>50 m in building (depending on the building and environment)

Indicators:

Operation: Green led

Alarm: Red led

Fail: Yellow led

Alarm: Buzzer

Activation delay: ~ 30 seconds

Relay activation delay: ~ 5 seconds

Sensor lifetime: 5 years

Operating temperature: 0°C .. 40°C

Storage temperature: -10°C .. +50°C

Humidity limits: 20% .. 80% RH (non condensing)

Protection grade: IP 42

Case: Material: ABS V0 self-extinguishing

Color:

Cover: Signal white (RAL 9003)

Details: Mouse grey (RAL 7005)

Size: 148 x 84 x 40 mm (WxHxD)

Weight: ~ 300 gr.
