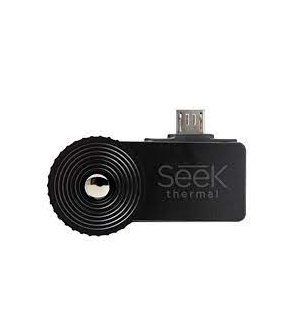

SEEK Compact XR (UT-AAA) Thermal Camera (-40°C to 330°C, 206 x 156, for Android)

Detector and Optics

Thermal Sensor: 206 x 156 pixels

Detection Distance: 550 m

Field of View: 20 degree

Temperature Range: -40 to 330°C

Frame Rate: <9Hz

Focus: Adjustable

Lens Material: Chalcogenide

Microbolometer: Vanadium oxide

Pixel Pitch 12 microns

Spectral Range: 7.5 to 14 microns

System Specs

User Interface: Connects to a smartphone. Controlled by free Seek mobile app

Temperature Display Scale: Fahrenheit or Celsius

Colour Palettes: 9 options

Thermal Tools: Spot thermography, Hi-low and Threshold modes

Capture Settings: Records photos and video

Device Dimensions (H x W x D): 1 x 1.75 x 1 inches

Device Weight: 0.5 ounces
