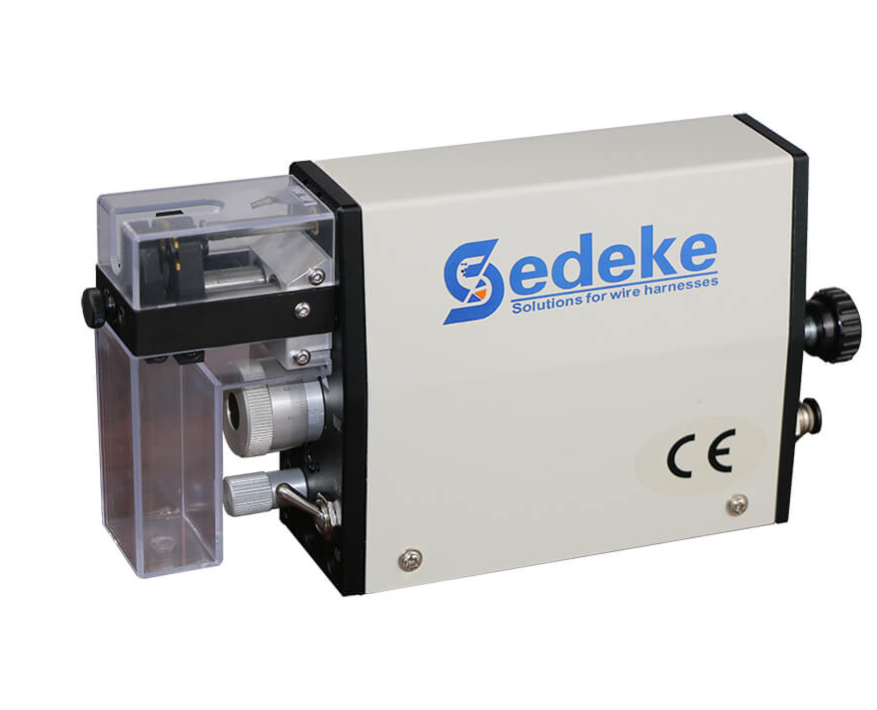

Sedeke UniStrip 2016 Pneumatic Wire Stripping Machine (0.05–3.3 mm²)

Type: Pneumatic

Wire Size Range: 0.05–3.3 mm²

Precision of Diameter Setting: 0.01 mm (0.001")

Max. Outer Cable Diameter (partial strip / full strip): 3.2 / 3.2 mm (0.12" / 0.12")

Length (partial strip / full strip): 1–20 mm (0.04–0.78" / 0.78")

Start Mode: Sensor

Graduated Full Strip Increments: 0.5 mm (0.019")

Graduated Partial Strip Increments: 2.0 mm (0.078")

Cycle Time (max. stripping length): approx. 0.3 s

Stripping Blade: V-blades

Compressed Air: 5–6 bar (75–90 psi)

Compressed Air Consumption (operating at 6 bar / 90 psi): 0.28 L/cycle

Noise Level (equivalent permanent sound pressure): < 75 dB(A)

Dimensions (L × W × H): 270 × 90 × 135 mm

Weight: 2.5 kg
