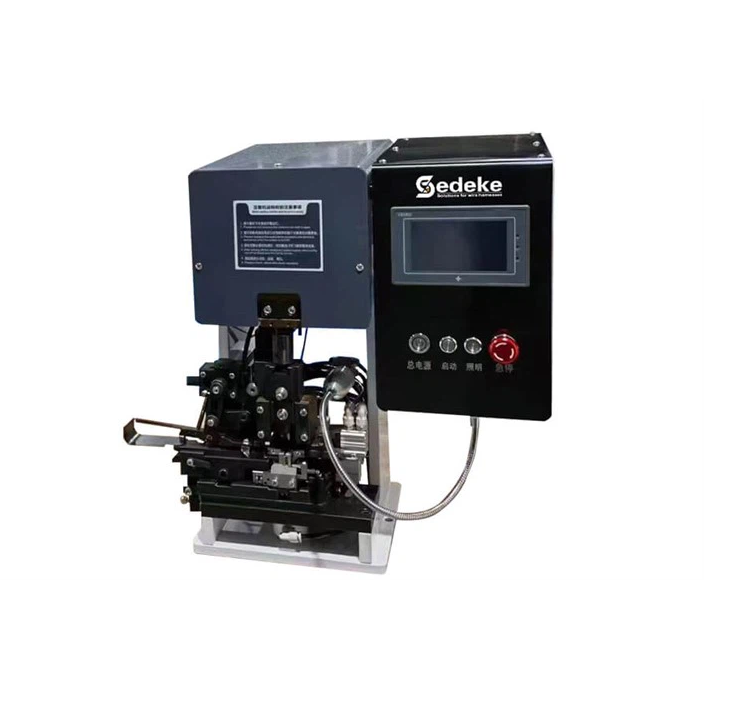

Sedeke TM-20SCS Servo Stripping and Crimping Machine (AWG32#-AWG18#)
ManufacturerSedeke(View more products from this manufacturer)
ModelTM-20SCS
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power supply: 200V–240V 50/60Hz
Air source: 0.4～0.6Mpa
Dimension: 500×500×550mm
Net weight: 70KG
Applicable wire size: AWG32#–AWG18#
Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.
Stripping length: 1.0～10.0mm
Stripping tolerance: 0.05～0.1mm
Position tolerance: 0.05～0.1mm
Crimp terminal: open chain terminal; horizontal
Crimping capacity: 2T or 4T
Press stroke: 30mm
Power: 750W
Number of strokes: 4000PCS/hour
