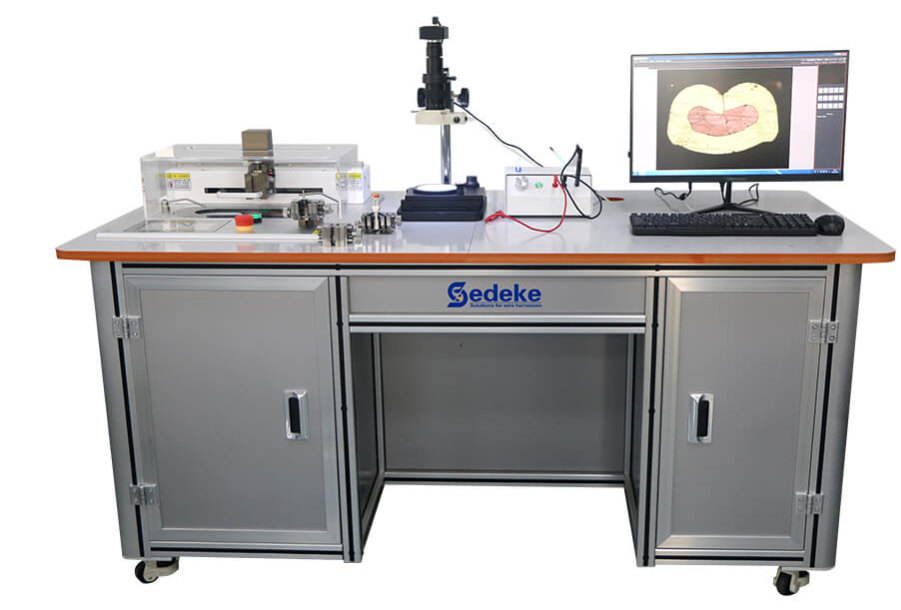

Sedeke TCA-150 Terminal Cross Section Analyzer (0.01 ~ 400 mm² (φ0.01 – 30 mm))

Applicable range of cutting part: 0.01 ~ 400 mm² (φ0.01 – 30 mm)

Cutting speed: 1–2800RPM

Grinding speed: 1–2800RPM

Cutting wheel: Outer Diameter 150MM, ID: 32MM, Thickness: 0.5MM

Z axis fine-tuning range: 0.00MM – 10.00MM

Cooling system: Automatic water circulation system (effectively reducing the impact of high temperature on the internal structure during the cutting process)

Image capture part: Imported 5 million digital high-quality, low-distortion optical instruments

Magnification: 0.7X, 1X, 1.5X, 2.0X, 2.5X, 3.0X, 3.5X, 4.0X, 4.5X (0.5 card position shift technology)

Video magnification: 16X – 500X

OD of specially made sandpaper: 150MM (1000#, 2000#)

Fixture part: Using high-end three-axis clamps, irregular wire harness terminals can also be clamped

Electrolysis time: 5–30 Seconds

Dimensions: 1700 × 800 × 850MM

Weight: About 200KG
