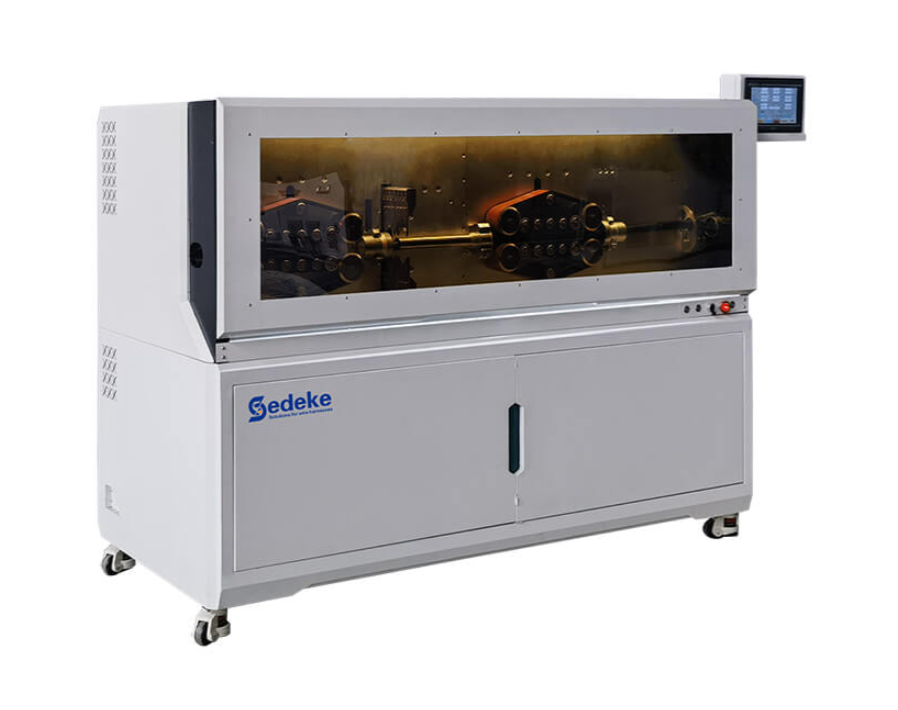

Sedeke ESC-BX400 Automatic Cable Cutting and Stripping Machine (10mm² - 400mm²)

Display: 10 inch touch screen

Processing range: 10–400mm²

Max. diameter of the conduit: Φ45mm

Stripping length: Front tripping: 1–1000mm; End stripping: 1–300mm

Dimensions (L*W*H): 1720*700*1287mm

Net weight: 750kg

Cutting length: 10mm–9999999.99mm

Cutting tolerance: ≤0.002*L (L = cutting length)

Blade material: High-quality high-speed steel

Productivity: 1000PCS/hour (depending on the length and size of the cable)

Drive mode: 32 rollers drive (feeding–stepper motor, blades–servo motor)

Wire feeding method: Belt feeding, no embossing or scratches on the cable

Lift operation mode: Digitally adjust the height of the pressure roller

Power supply: AC220V 50/60Hz; 110V 50/60Hz

Air source: 0.5Mpa–0.8Mpa
