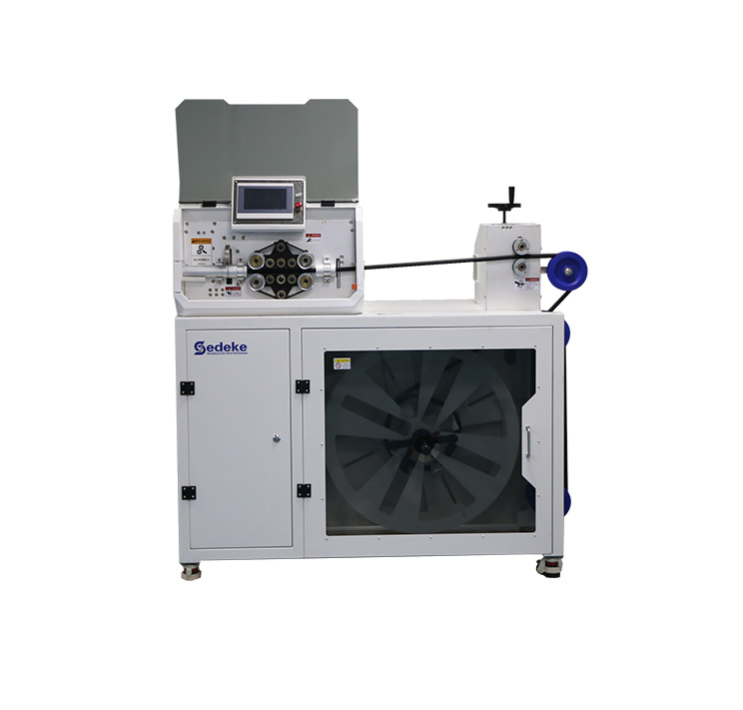

Sedeke EC-830F Automatic Tube Cutting Machine With Feeding System (1–9999999.9 mm)

Display: 7 inch touch screen

Processing Range: 4–35 mm O.D.

Cutting Length: 1–9999999.9 mm

Cutting Accuracy: 0.005 × L (L = cutting length)

Productivity: 6000 pcs/hour

(Depending on tube length and size)

Feeding Range: 120–750 mm

Drive Mode: 10 rollers drive

Feeding Method: Belt feeding, no embossing or scratches on the tube

Lifting Operation Mode: Digitally adjust the height of the pressure roller

Slitting Power Mode: Optional servo motor

Slitting Position:

Any position

Any length

Continuous cutting

Power Supply: AC220V 50/60 Hz; 110V 50/60 Hz

Dimensions (L × W × H): 1550 × 650 × 1400 mm

Net Weight: 260 kg
