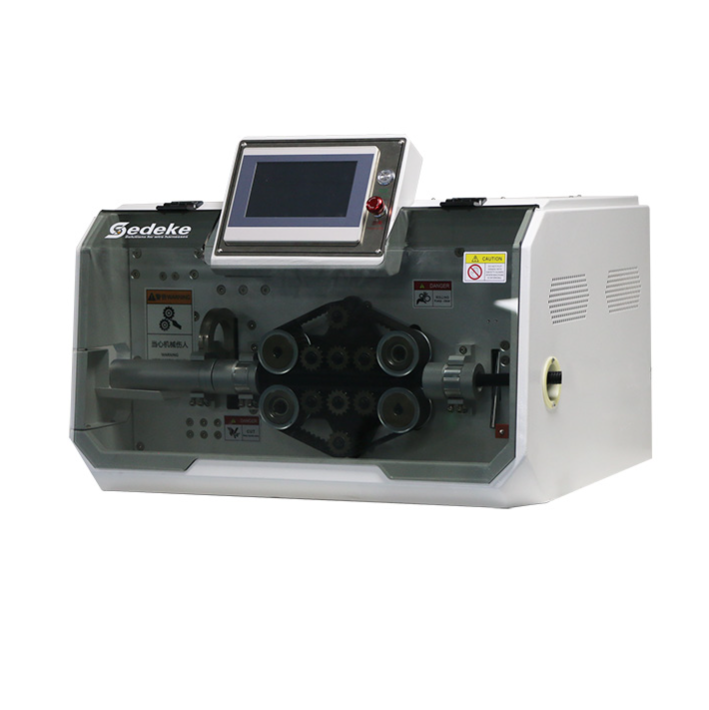

Sedeke EC-830 Corrugated Tube Cutting Machine (4–35 mm O.D.)

Display: 7 inch touch screen

Processing Range: 4–35 mm O.D.

Cutting Length: 1–999999.9 mm

Cutting Accuracy: 0.005 × L (L = cutting length)

Productivity: 6000 pcs/hour (cut length = 100 mm / diameter = 10 mm)

Drive Mode: 10 rollers drive

Feeding Method: Belt feeding, no embossing or scratches on the tube

Lifting Operation Mode: Digitally adjusted pressure roller height

Slitting Power Mode: Optional servo motor

Slitting Position:

Any position

Any length

Continuous cutting

Power Supply: AC220V 50/60 Hz; 110V 50/60 Hz

Dimensions (L × W × H): 680 × 480 × 550 mm

Net Weight: 85 kg
