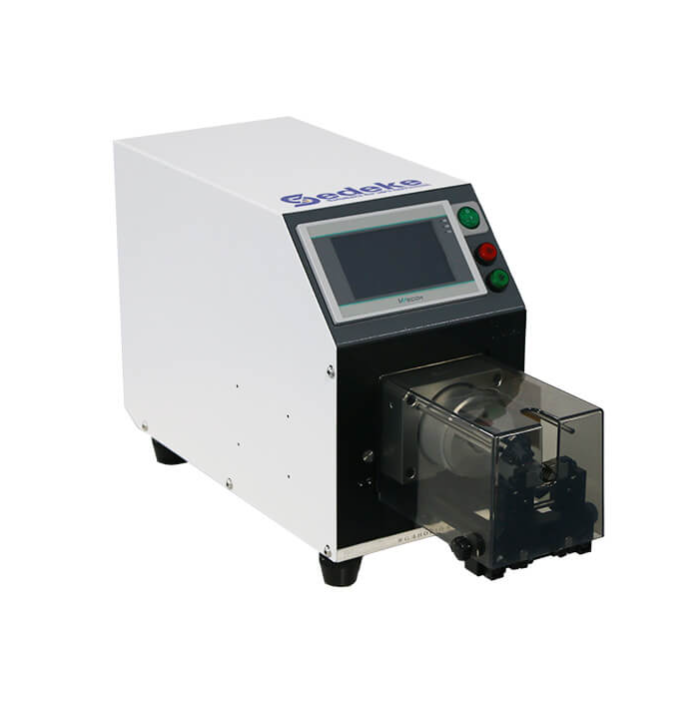

Sedeke CS-2486 Coaxial Cable Wire Stripping Machine

Overall Dimensions: 530X190X300(MM)

Weight: 19KG

Max. processing diameter: 7.5 mm

Min. processing diameter: 0.5mm

Max. stripping length: 48mm

Min. stripping length: 0.1mm

Max. stripping layers: 9 layer

Cutting depth unit: 0.01mm

Drive way: Motor / ball screw drive

Rotary cutting blade: 2 pieces, Material: imported tungsten steel

Centering blade: 2 pieces, Material: imported high speed steel

Thread tension device: Automatic centering, motor drive, clamping force program control

Startup mode: Induction / Manual / Pedaling(Optional)

Power: 220V/50HZ 250W

Work environment: 0-50 degree, moderate dryness, vibration-free work surface

Production: At least 500-700 pcs/hr (depending on different wire length and operating procedures)
