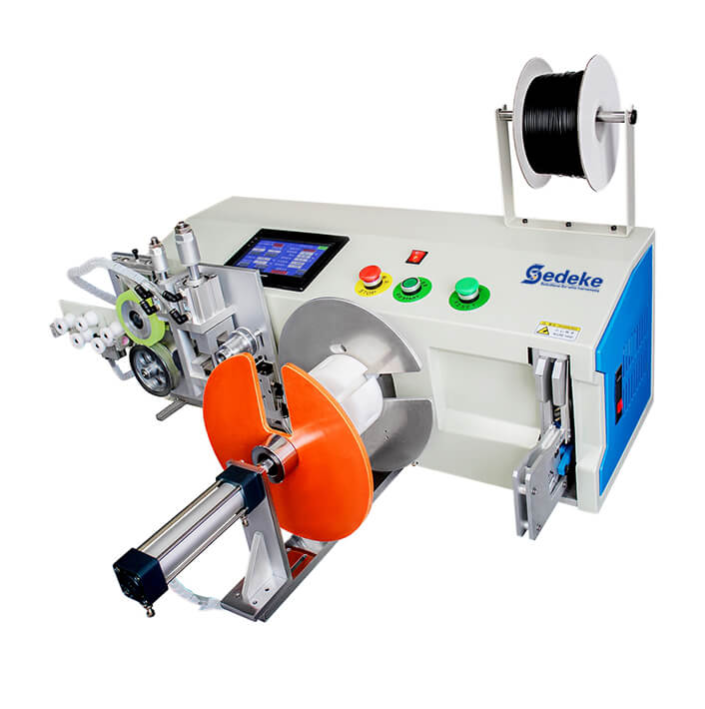

Sedeke CB-B15MCST Automatic Wiring Winding Binding Machine (1–8 turns/s; 0.6 s/time)

Loading weight: 1.5 KG

Winding inner diameter: 50–200 mm

Winding length or number of turns: Adjustable

Disc diameter: Standard 280 mm

Sorting stroke: Standard 100 mm

Winding speed: 1–8 turns/s

Binding speed: 0.6 s/time

Cable tie length: 120–190 mm

Tie twist circles: Adjustable

Cable tie bundle diameter: 18–45 mm

Inner diameter of wire harness bundling: >50 mm

Cable tie specification: Iron core cable tie thickness <1 mm × width 3 mm

Input voltage: AC 220V 50 Hz/60 Hz

Rated power: 500 W

Weight: 80 KG

Dimensions: L1100 × W440 × H430 mm (without cable tie bracket)
