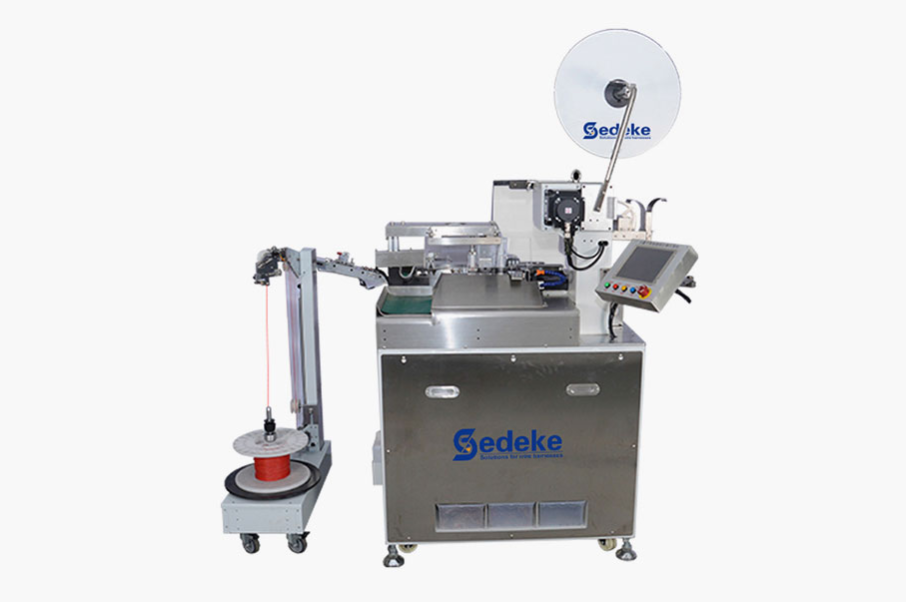

Sedeke ACC-580 Full-automatic twisting, soldering and crimping Machine (AWG20–AWG32 / AWG16–AWG30)

Wire Length: 30 mm – 20,000 mm

Stripping Length Side 1: 0.1 – 10.0 mm

Stripping Length Side 2: 0.1 – 20.0 mm

Tinning Length: 2 – 15 mm

Wire Cross Section: AWG20–AWG32 / AWG16–AWG30

Cutting Accuracy: <±(0.5+0.002*L)

Crimping Force: 2 Ton

Capacity: Max. 3,000 PCS/Hour

Power Supply: AC220V 50Hz 10A

Air Pressure: >0.4Mpa–0.5Mpa

Weight: 500 kg

Dimensions (L × W × H): 950×800×1290 mm
