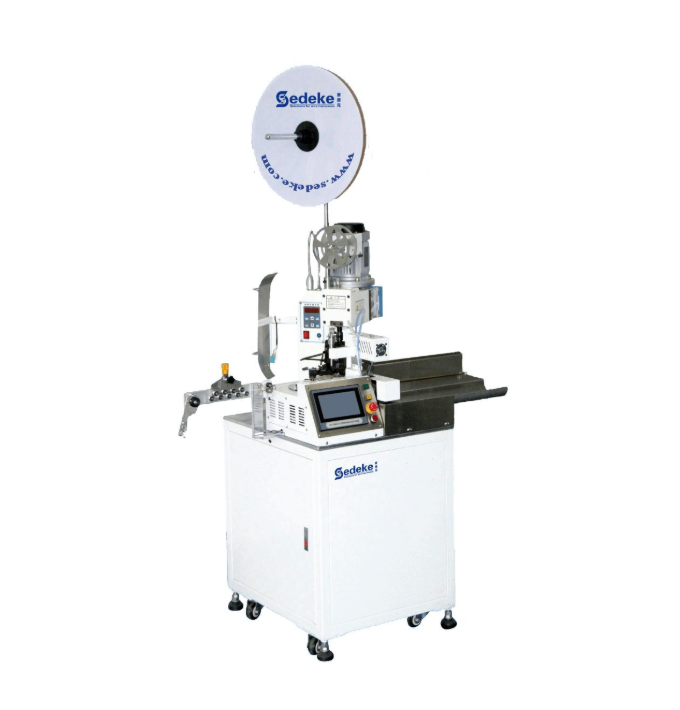

Sedeke ACC-101 Automatic Single-head Terminal Crimping Machine (AWG#18–AWG#30)

Power supply: 50/60HZ 220V single phase

Processing length: Twisted 20–9999mm; Untwisted 8–9999mm

Wire processing wire range: AWG#18–AWG#30

Terminal Machinable Range: 0.8–3.96mm pitch

Capacity: 100–200mm long with twisted wire 3800/hour; 300mm long without twisted wire 4000–5000PCS/H

Stripping length: 1–15mm (over 15mm needs to be customized)

Twisted wire length: 3mm–15mm

Cutting accuracy: ±(0.2%*L+1)mm

Air pressure: 0.5–0.7Mpa (5–7KG/m³)

Dimensions: 600×700×1500mm

Weight: About 280KG±15KG
