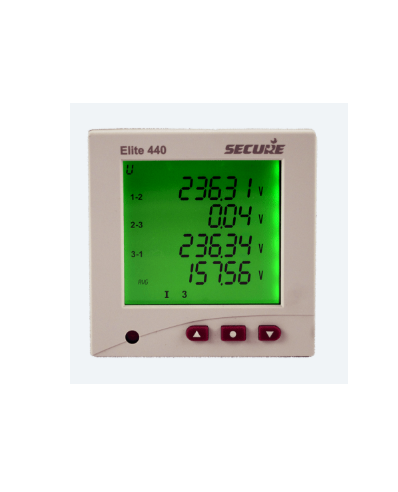

CEWE ELITE 440-448 Multimeter

Connection type: Common product for HT3/ HT4/LT application

Voltage range:

Measurement voltage range: 57.7 V (100V)-240 V (415 V) AC 3 phase 4 wire (3 phase 3 wire)

Tolerance: -30% to +20% of V

Aux power supply range: 80-300 V AC/DC or 24-60 V DC (Variant)

Current range: Available 1-2A and 5-10 A in single variant (field configurable)

Main frequency: 50/60Hz with ±5%

Accuracy Class: 0.5s

Burden: Aux burden: 3.5 VA; 8VA when all modules connected.

Current ckt burden: 1 A-0.05VA per phase, 5 A-0.25 VA per phase.

Voltage ckt burden: 0.15 VA per phase.
