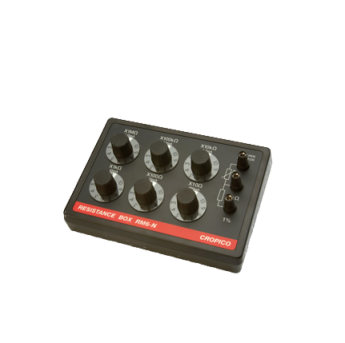

Seaward RM6 Decade Resistance Boxes (10 x 10Ω~10 x 1MΩ, 0.6~200 mA)

Decade: 10 x 10Ω, 10 x 100Ω, 10 x 1kΩ, 10 x 10kΩ, 10 x 100kΩ, 10 x 1MΩ

Accuracy: ± 1%

Maximum Current: 200mA, 60mA, 20mA, 6mA, 2mA, 0.6mA

Terminals:

Two binding posts will accept 4mm banana plugs and spade tags.

One terminal for connection to panel/earth

Maximum Continuous Working Voltage: 60VDC, 30Vrms

Resistors:

Metal film 0.4W at 70°C

Temperature coefficient ±100ppm/°C

Switches:

Silver plated brass contact resistance <10Ω positive click mechanism

Insulation Resistance >50,000Ω

Residual Resistance: <0.1Ω

Dimensions: 287 x 65 x 65mm / 11 x 2.6 x 2.6” (w x h x d) approx

Mass: 0.48kg/11lbs

Case: Wood with anodised aluminium top panel'
