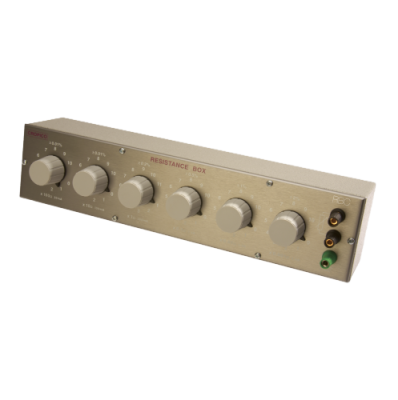

Seaward RBC6–A Decade Resistance Boxes (10 x 0.1Ω~10 x 10kΩ, 22~7000 mA)

Decade: 10 x 0.1Ω, 10 x 1Ω, 10 x 10Ω, 10 x 100Ω, 10 x 1kΩ, 10 x 10kΩ

Accuracy: 5%

Current Max mA: 7000, 2200, 700, 70, 22

Decades: 6

Total resistance: 111,111 Ω

Resolution: 0.1 Ω

Resistance per Steps in ohms: 0.1Ω

Calibration: Calibration certificates including UKAS traceable are available on request

Switches: Contact material gold plated brass, Contact resistance <5mΩ, Insulation resistance (all paths>10GΩ)

Resistors

Temperature Co-efficient

0.1Ω: <10ppm/ºC

1Ω, 10Ω: <400ppm/ºC

100Ω, 1KΩ, 10KΩ:<200ppm/ºC

Full Load Stability: <5%, 70ºC, 1000 hours

No Load Stability: <1%, 20ºC, 1 year

Temperature Range: 0°C to + 70°C

Power Rating: 5W per resistor

Maximum Working Voltage: 60VDC/30Vrms

General Specifications

Dimensions

6 Dial Box - 450 x 105 x 130mm / 18 x 4.1 x 5.1” (w x h x d) approx

Mass

6 Dial Box - 3.5kg / 8lbs
