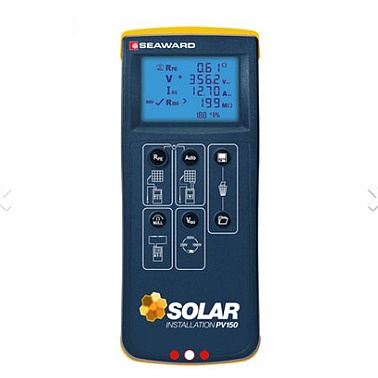

SEAWARD PV150 Solar Installation Tester (199Ω,1000V)

Open Circuit Voltage Measurement (PV Terminals)

Display Range 0.0VDC - 1000VDC

Measuring Range 5.0VDC - 1000VDC

Resolution 0.1VDC maximum

Accuracy ± (0.5 % + 2 digits)

Enunciators DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)

Display Range 0.00ADC - 15.00ADC

Measuring Range 0.50ADC - 15.00ADC

Maximum Power 10kW

Resolution 0.01ADC maximum

Accuracy ± (1% + 2 digits)

Earth Continuity Resistance Measurement (4mm Terminals)

Test Voltage Open Circuit >4VDC, nominal

Test Current into 2 Ω >200mA

Display Range 0.00Ω - 199Ω

Measuring Range (EN 61557-4) 0.05Ω - 199Ω

Resolution 0.01Ω maximum

Accuracy ± (2% + 5 digits)

Test Leads Zero Zero up to 10Ω, by zero button

Visible Warning ≥30V AC or DC at inputs

Circuitry Protection Test inhibited if ≥30V AC or DC at inputs

Repeat tests as per IEC61557-4 Approx 4000 1 second test

Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal)

Test Voltage Open Circuit 250V, 500V, 1000V (as per IEC61557-2)

Test Voltage Specification -0% +20% (open circuit)

Test Voltage @ 1mA >1mA into UN x (1000Ω/V)

Test Current Short Circuit <2mA

Display Range 0.05MΩ - 199MΩ

Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal

Continued...

Measuring Range (EN 61557-2) 0.05MΩ - 199MΩ

Resolution 0.01MΩ maximum

Accuracy 0.05MΩ - 100MΩ ± (5% + 5 digits)

101MΩ - 199MΩ ± (10% + 5 digits)

Visible Warning ≥ 30V AC or DC at inputs

Circuitry Protection Test inhibited if ≥ 30V AC or DC at inputs

Repeat tests as per IEC61557-4 Approx 3000 1 second tests

Rpe Voltage Measurement (4mm Terminals)

Display Range 30V - 440VAC/DC

Voltage Measuring Range 30V - 440VDC

30V - 440VAC 50-60Hz

Resolution 1V

Accuracy ± (5% + 2 digits)

Operating Current (via AC/DC Current Clamp)

Display Range 0.1A - 40.0A

Current Measuring Range 0.1A - 40.0A DC

0.1A - 40.0A AC 50-60Hz

Resolution 0.1A

Accuracy ± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)

Display Range 0.00kW - 40kW

Measuring Range 0.50kW - 40kW

Resolution 0.01kW

Accuracy ± (5% + 5 digits)

Instrument Dimensions and Weight

Weight 0.95kg / 2.1lb

Dimensions 26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3”

Display Custom LCD with backlight

Power Source 6 x 1.5V AA cells

Battery life >1000 test sequences

Auto power down User programmable

Onboard memory Up to 200 complete test datasets

Connectivity

USB download to PC (CSV format)

Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft
