Seaward PV150+ Complete Kit A Compact Solar Pv Tester With I-V Curve Tracing Complete Kit

Open Circuit Voltage Measurement (PV Terminals)

Display Range: 0.0V DC – 1000V DC

Measuring Range: 5.0V DC- 1000V DC

Resolution: 0.1V DC maximum

Accuracy: ± (0.5 % + 2 digits)

Enunciators: DC voltage polarity correct or reversed

Earth Continuity Resistance Measurement (4mm Terminals)

Test Voltage Open Circuit: >4V DC, nominal

Test Current into: 2 Ω >200mA

Display Range: 0.00Ω - 199Ω

Measuring Range (EN 61557-4): 0.05Ω - 199Ω

Resolution: 0.01Ω maximum

Accuracy: ± (2% + 5 digits)

Test Leads Zero: Zero up to 10Ω, by zero button

Visible Warning: ≥30V AC or DC at inputs

Circuitry Protection: Test inhibited if ≥30V AC or DC at inputs

Repeat tests as per IEC61557-4: Approx. 4000 1 second test

Rpe Voltage Measurement (4mm Terminals)

Display Range: 30V - 440V AC/DC

Voltage Measuring Range:

30V - 440V DC

30V - 440V AC 50-60Hz

Resolution: 1V

Accuracy: ± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)

Display Range: 0.00kW - 40kW

Measuring Range: 0.50kW - 40kW

Resolution: 0.01kW

Accuracy: ± (5% + 5 digits)

Connectivity

USB download to PC (CSV format)

Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft)

Short Circuit Current Measurement (PV Terminals)

Display Range: 0.00A DC - 15.00A DC

Measuring Range: 0.50A DC - 15.00A DC

Maximum Power: 10kW

Resolution: 0.01A DC maximum

Accuracy: ± (1% + 2 digits)

Included in the Kit:

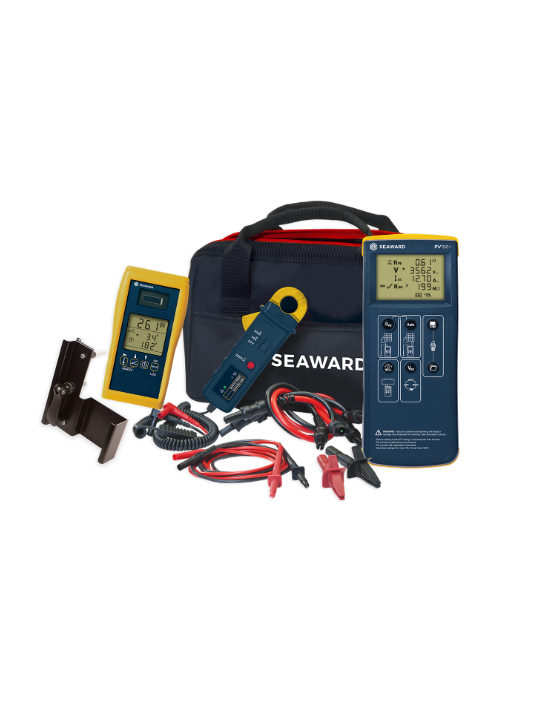

Seaward Solar Installation PV150+ instrument.

SolarCert PC Software.

2 x MC4 test lead adaptors.

2 x Combiner box test probes and detachable alligator clips (MC4).

2 x Test leads, with test probes and detachable alligator clips (4mm).

AC/DC current clamp.

Solar Survey 200R irradiance meter and temperature probe.

Solar Survey 200R mounting bracket.

Rugged carry bag.

Quick Start Guide.

UKAS Calibration Certificate (PV150+)
