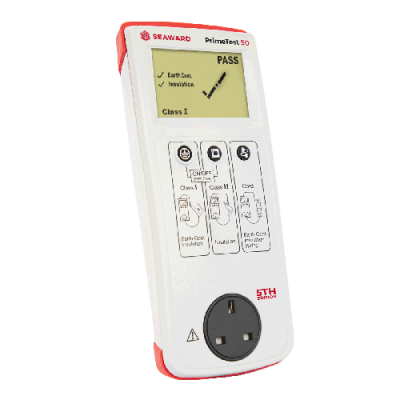

Seaward PrimeTest 50 PAT Testers (+/- 200mA DC, 0.2Ω)

Earth Continuity

Test Current: +/- 200mA DC

PASS/FAIL Threshold: 0.2Ω

Insulation Resistance

Test Voltages: 250/500VDC

PASS/FAIL Threshold: 2MΩ

IEC Lead Test

Tests Performed:

Earth continuity

Insulation resistance

Live, neutral continuity and polarit

Power Socket test

Input Voltage Range: 230V +10%, -15% AC

Indicators:

Phase to earth voltage

Phase to neutral voltage

Neutral to earth

General Specifications:

Dimensions: 265 x 105 x 52mm (h x w x d)

Weight: 800g

Power Source: 6 x AA Batteries

Standard Accessories (Supplied with PrimeTest 50)

0.5m extension adaptor

Earth bond lead

6 x AA batteries

Carry Case
