Seaward APOLLO 600+ Pro Kit with Software PAT Testing Kits (+/- 200mA DC, 0.05~19.99 Ω, with Software)

Earth Continuity (Rpe)

Test Current: +/- 200mA DC

Measurement Range: 0.05Ω to 19.99Ω

Pass Value: User defined

Insulation Resistance (IR)

Test Voltage: 500V / 250VDC @ 1mA nominal

Measurement Range: 0.10MΩ to 19.99MΩ

Pass Value: User defined

IEC Lead Test

Test Voltage: 5VAC nominal

Test: Live / Neutral Checks for o/c, s/c and crossed polarity

Protective Conductor Current/Load

Test Voltage: Supply voltage, maximum load current 16A

Measurement Range: 0.25mA to 19.99mA

Pass Value: User defined

Touch Current

Test Voltage: Supply voltage, maximum load current 16A

Measurement Range: 0.10mA to 5.0mA

Pass Value: User defined

Load Power/Current

Test Voltage: 230V +10%, -15%, maximum load current 16A

Test Duration: Programmable up to a maximum of 240s

Measurement Range: 0.50A to 16.0A

Substitute (Alternative) Leakage Current

Test Voltages: >25VAC <50VAC

Measurement Range: 0.20mA to 19.99mA

Pass Value: User defined

RCD Test

Test Voltage: 230V +10%, -15%

Test Current: 30mA / 150mA rms sinusoidal

Display Range: 0ms to 2000ms

Test Method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

Voltage Range: 207V – 253VAC

Indicates configuration of voltage potential:

Line potential phase to earth

Line potential phase to neutral

Line potential neutral to earth

General

Memory size Apollo 600+: up to 50,000 records & 2,000 photos

Weight: 1.5kg

Dimensions: 230mm x 150mm x 100mm

Power Source: Mains or rechargeable battery pack

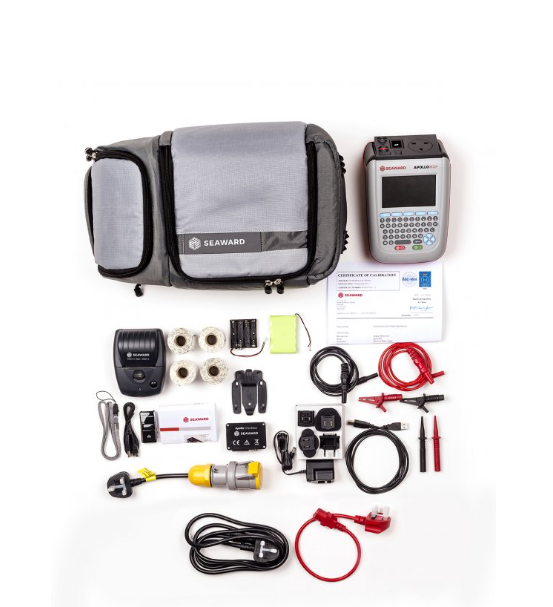

Supplied as standard:

Apollo Instrument 1

Professional Carry Case 1

Test Lead 1.2m with Alligator Clip, Red 1

Test Lead 1.2m with Allogator Clip, Black 1

IEC Extension Lead, 0.5m 1

Black Mains Lead 1

USB Download Lead 1

Apollo+ Check Box 1

UKAS Calibration Certificate 1

Quick Start Guide 1

Optional accessories

Test n Tag Pro Printer

Bluetooth Barcode Scanner (1D)

2x Pro labels 25mm

2x Pro labels 75mm,

Apollo Kit carry case

110V test adaptor.
