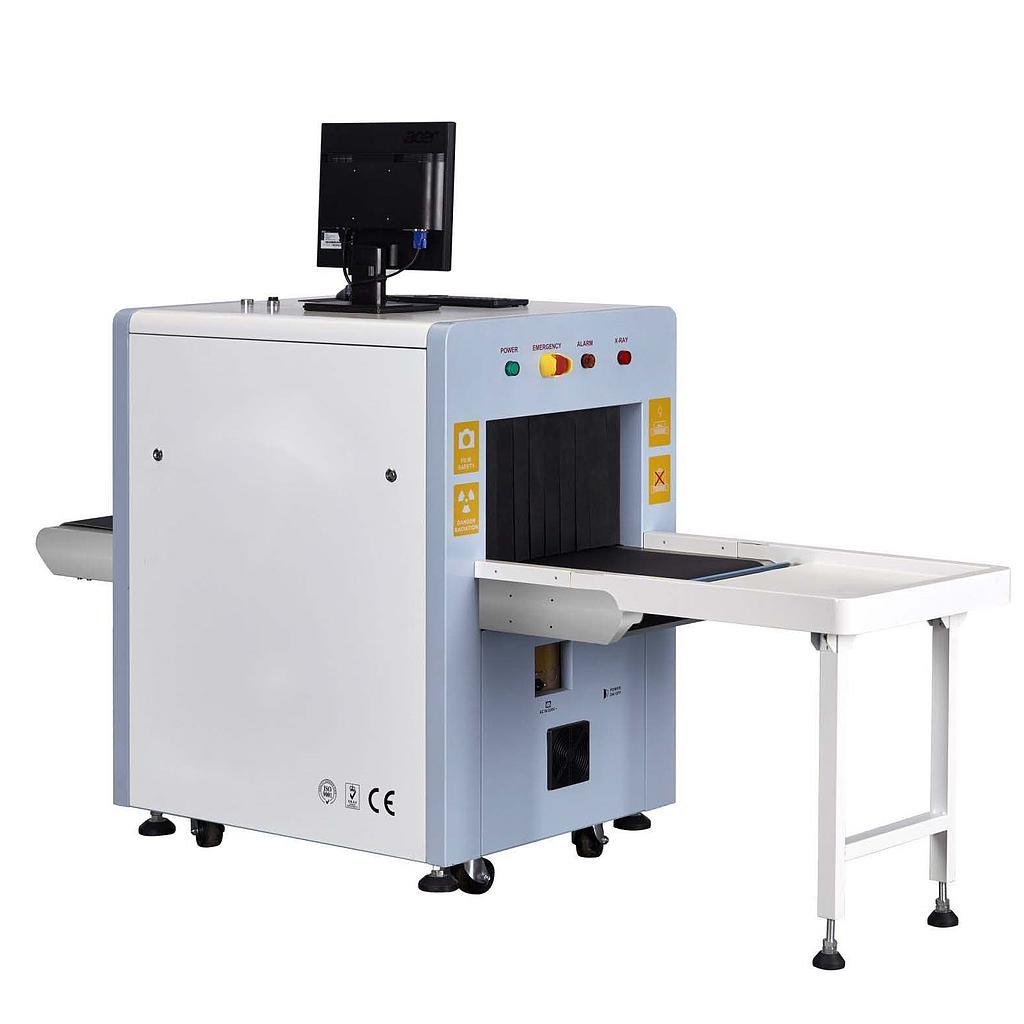

Seamark ZM ZM5030A X-Ray Baggage Scanner

Wire Resolution: Typical AWG40

Penetration resolution: Typical AWG32

Spatial resolution: Vertical:1.0mm, horizontal:1.0mm

Penetration: Typical 8mm

X-Ray dosage each inspection: ≤3.5μSv (uGy)

Boundary Leakage: ≤0.5μSv /h(uGy/h)

S/N ratio: <60dB

Conveyor speed: 0.2m/s

Conveyor max load: 100kg

Power consumption: 0.5KW

Safety performance requirements: Meet the requirements of GB15208.1-2005

E M C requirements: Meet the requirements of GB15208.1-2005

Electrical safety: Meet the requirements of GB15208.1-2005

Environmental applicability: Meet the requirements of GB15208.1-2005

Leakage current: ≤5.0mA

Film Safety: Guarantee ASA/ISO1600 Film

Weight: 260kg

Operation temperature/Humidity: 5℃- 40℃/0%-90%

Storage temperature/Humidity: -20℃-60℃ /10%-90%

Atmospheric pressure: 86kPa-106kPa

Operation Power: AC220V(±10%-15%) 50±3Hz

Operation system: LINUX
