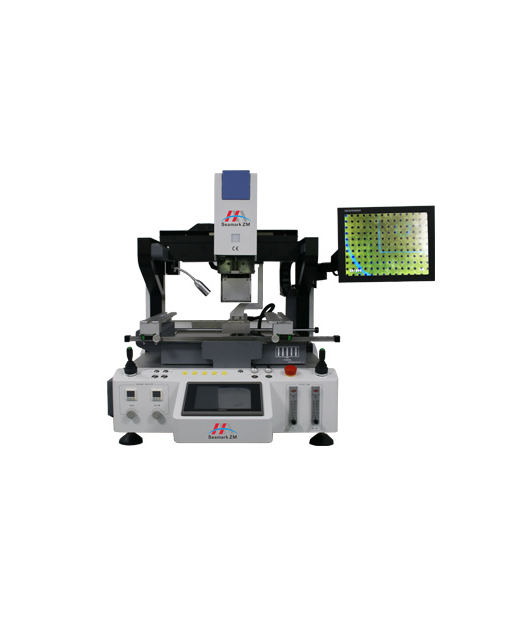

Seamark ZM ZM-R7830A Smart Optical BGA Rework Station

Power Supply: AC380V±10% 50/60HZ

Power: 7.15KW(Max), Top heater(1.45KW)

Bottom heater (1.2KW), IR Preheater (4KW), Other(0.5KW)

PCB Size: 565*467mm(Max); 6*6mm(Min)

BGA Chip Size: 80*80mm(Max); 2*2mm(Min)

IR Heater Size: 500*380mm

Motion Control: X/Y/Z

Temperature Sensor: 5 Pcs

Operation Method: 8" HD touch panel

Control System: Panasonic PLC + Temperature control module

Display System: 15" HD industrial display ( 1080P 16:9)

Alignment System: 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator

Vacuum Adsorption: Automatic

Alignment Accuracy: ±0.01mm

Temperature  Control: K-type thermocouple closed-loop control with accuracy up to ±1℃

Feeding Device: Yes

Positioning: V-groove with universal fixture

Dimensions: L810*W1100*H960mm

Weight: 151KG
