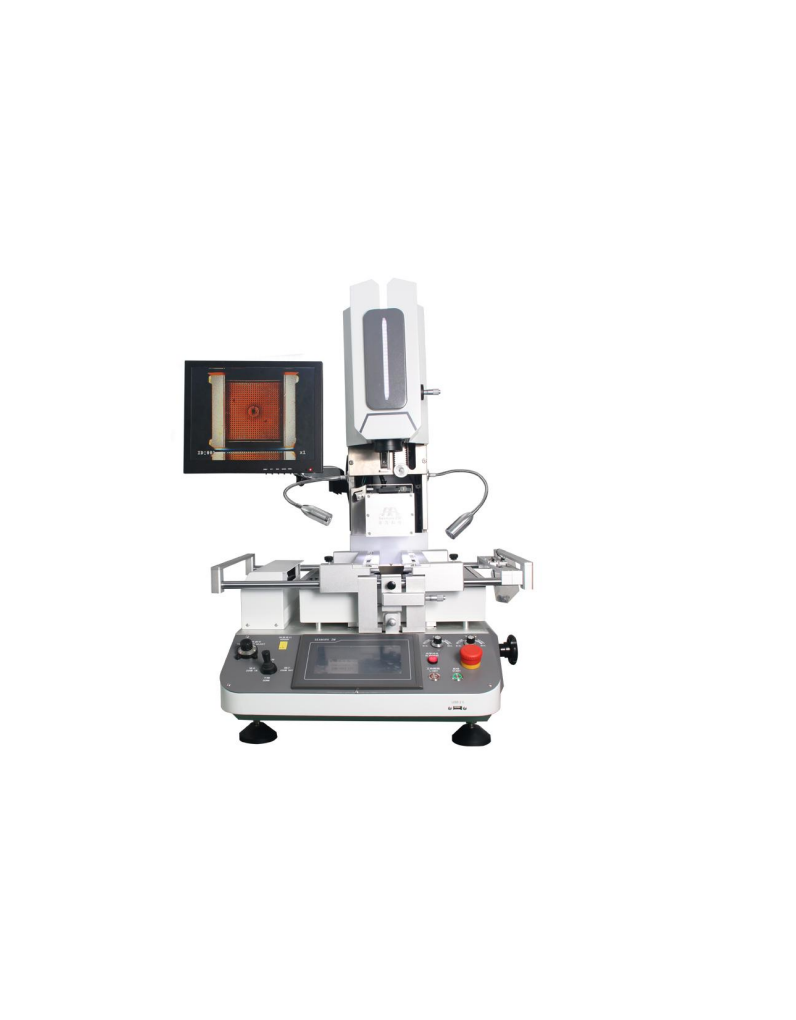

Seamark ZM ZM-R720A Rework Station LED/BGA/SMD
ManufacturerSeamark ZM(View more products from this manufacturer)
ModelZM-R720A
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Total Power: Max 5800W
Power: AC 220V±10% 50/60 Hz
Top heater power: 1200W
Bottom heater power: 1200W
IR power: 3200W
Hot air temp: 400℃ (Max)
Preheating temp: 400℃（Max）
Positioning: V-groove +laser positioning+ universal fixture
PCB size: Max 415×370 mm Min 6×6 mm
Preheating size: 370mm×410mm
Chip type BGA, QGN, CSP, POP, QFN, Micro SMD, LED lamp beads
Chip size: Max 60×60mm Min 0.6×0.6 mm
Dimensions: L800×W640×H950 mm
Temperature sensor: 1Pc
Net weight: 83kG
