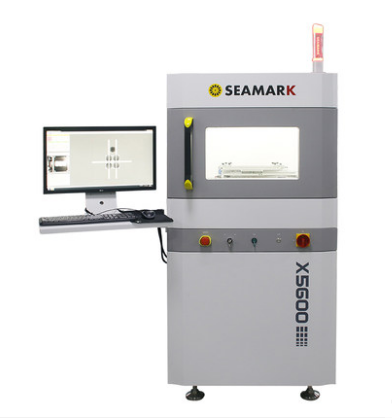

Seamark ZM X5600 X-ray inspection equipment (10 - 200 μA; focal :15μm)

Name: Seamark ZM X5600 X-ray inspection equipment (10 - 200 μA; focal :15μm)
Brand: Seamark ZM

ModelX5600

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

X-RAY launch tube

Tube type: Closed X-ray tube

Tube voltage: 40 - 90kV

Maximum tube current: 10 - 200 μA

Focal spot size: 15μm

Magnification:

Geometric magnification：150X

System magnification： 800X

Detector

Image speed: 20 -40 fps

Pixel Matrix: 768x768px - 1536x1536px

Field of View: 65x65 - 130x130mm

Cabinet SpecificationsTable size/Max Sample Size: 280mm*320mm

Dimension: Length: 850mm, width: 1000mm, height: 1700mm

Net weight: 750kg

Input voltage: AC 110-220V (+10%) (international standard power supply)

X-ray leakage amount: ≤0.3 u Sv/hr

Control System:Industrial PC WIN10 64bits

Total power: 1500W
