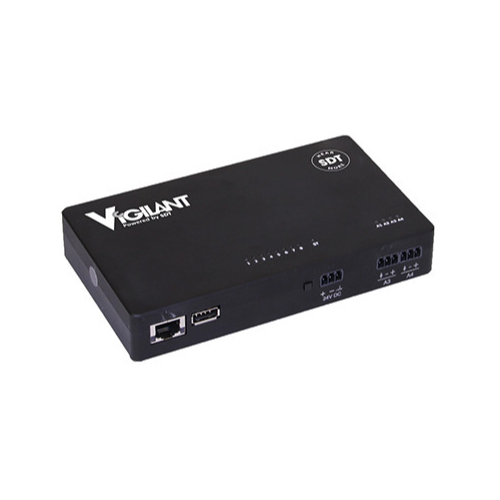

SDT VIGILANT Vigilant monitoring system (1GB)

Operable with: Provided sensors (voltage output)

Main dynamic inputs: 8 channels (for vibration and ultrasound)

Auxiliary inputs: 4 channels (ex: tachometer, temperature, etc.)

USB port: 1 Host, used as power supply only

Status indicators: 13xRGB LED

Power supply: V 20-26 V DC, 24 V DC nominal

Power consumption: W <12

Internal battery (for safe shutdown only): Lithium-Po, 3.7 V 1300 mAh

Configuration system: Integrated local webserver application

CPU: ARM Cortex™-A9 Quad Core (NVIDIA® Tegra™ 3)

RAM: GB 1

Size of the unit: mm(inch) Lxlxh: 162x95x27 (~6.38x3.74x1.06)

Weight of the unit: kg (oz) 0.55 (~19.4)

Operating temperature range: °C (°F) -30 to +44.5°C (-22 to 111.2 °F), non-condensing

Humidity: % 95% RH
