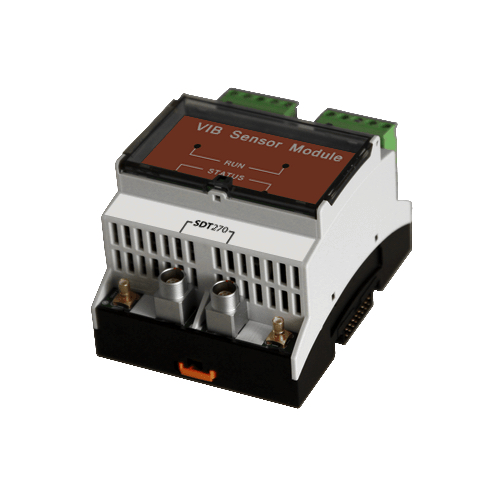

SDT VIB Permanent Monitoring (10 Hz to 1000 Hz)

Operable with: ICP Accelerometer (provided by SDT International)

Processor: ARM Cortex-M4 @ 120MHz

Measurement channel: 2 parallel isolated channels

Measuring range: 0.0g to 10.0g

Resolution: 0.1g

Measurement bandwidth: 10Hz to 1kHz (ISO2954 compliant)

Signal amplification: Automatic

Operating temperature range: -20 to +55 °C | -4 to 131°F

Dimensions housing: 71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting: 35 mm DIN-rail

Weight: 180g | 6.35oz

Power supply: 24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)

Power consumption: ≈100mA

Sample rate: 32ksps

Resolution: 12bits
