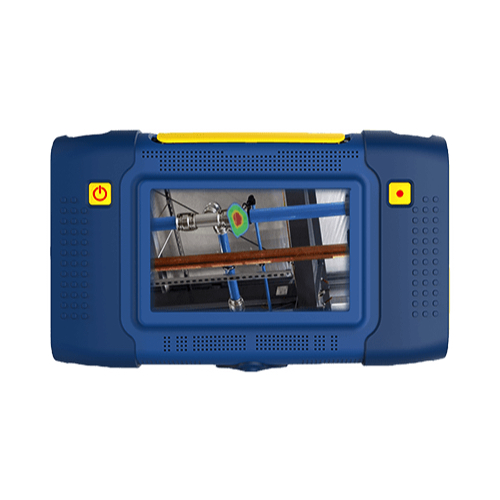

SDT SonaVu Acoustic Imaging Camera (1-47.5. kHz)

Sensor (Microphone): 112 Digital MEMS

Sample rate: k S/s 96

Resolution: bits 16

Full measurement frequency range: 1-47.5. kHz

Microphone Sensitivity: dB FS -41 (Full scale)

Signal-to-Noise Ratio: dBA 66

Detection distance (range sensor): m (ft) 0.3 m to 50 m (1 to 164)

Gain: dB 0, +10, +20 or +30

Average function Fast: update every 3 frames

Slow: update every 10 frames

Measurement bandwidth/mode

Audible mode : 4kHz-20 kHz + direct audible output

Ultrasound mode: 25 kHz-40 kHz + heterodyned audible output

Custom mode: set up by user

Multisource Visualization mode: No

Display: 5” Color LCD + Touch control

Operating temperature range: °C (°F) -20°C to 50°C (-4°F to 122°F)

Operating Humidity: % 10 ~ 85 %

IP rating: 20

Camera lighting: 2 LEDs

Dimensions: mm (in) 237 x 146 x 56 (9.3 x 5.7 x 2.2)

Weight: kg (lb) 1.2 (2.65)
