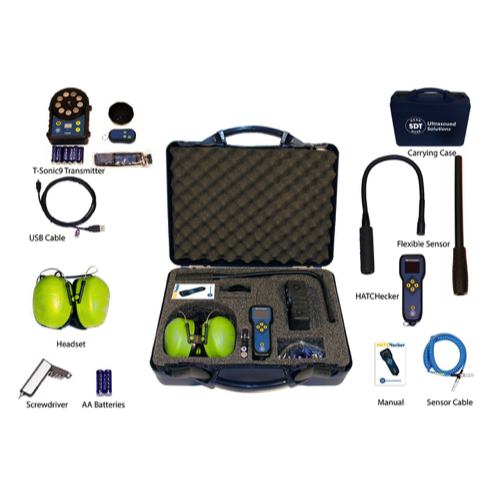

SDT HATCHecker Ultrasound Detector (39.6 to 40.1kHz)

Operable with: SDT FLEX ID2 & T-Sonic 9

Measurement interface: 1 channel via a 7 pole LEMO connector

Maximum cable length: m (ft) Up to 30 (98) (since v 3.1.535)

Display: 160x128 pixels Color OLED

Keyboard: 5 function keys

Measuring range: dBµV -6 to 99.9 (reference 0 dB = 1 µV)

Resolution digits: 0.1

Measurement bandwidth: kHz 39.6 to 40.1

Signal amplification: dB +30 to +102 by step of 6 dB

RMS period time: 250 ms (main screen) / 3 sec (bar graph)

Sampling frequency: kHz/ksps 64

ADC Resolution: bits 12

Operating temperature range: °C (°F) -10 to +50 (14 to 122) non-condensing

IP rating: IP42

Dimensions: mm (in) 158x59x38.5 (6.22x2.32x1.51)

Weight: g (oz) 164 (5.78)
