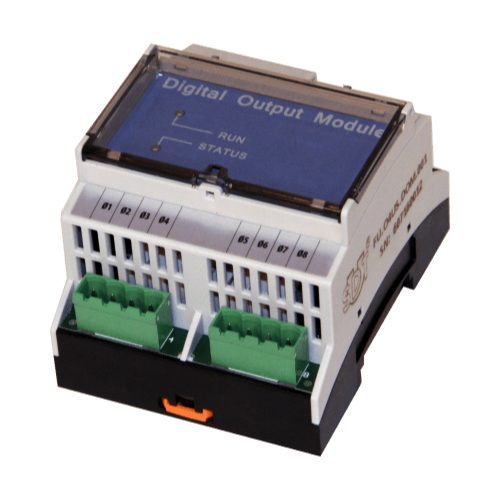

SDT DOM Permanent Monitoring (3-30 VDC)

Processor: ARM Cortex-M3 @ 72MHz

Output channel: 8 electrically insulated digital outputs

Operating temperature range: -20 to +55 °C | -4 to 131°F

Dimensions housing: 71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting 35 mm DIN-rail

Weight: 130g | 4.59oz

Power supply: 24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)

Power consumption: ≈50mA

Power reference: 3VDC – 30VDC external power supply (external wiring is needed)

Output voltage high state: Internally connected to external power reference positive voltage

Output voltage low state: Internally pulled down to external power reference negative voltage

Minimum switching time: 250 ms
