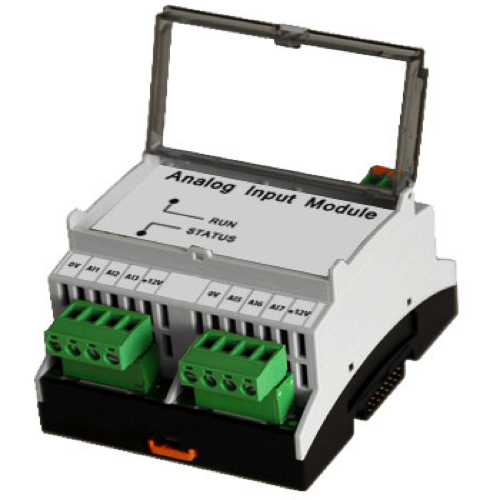

SDT AIM Permanent Monitoring (0-10 VDC)

Processor: ARM Cortex-M3 @ 72MHz

Input channel: 8 electrically insulated digital inputs

Operating temperature range: -20 to +55 °C | -4 to 131°F

Dimensions housing: 71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting: 35 mm DIN-rail

Weight: 125g | 4.4oz

Power supply: 24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)

Power consumption: ≈50mA

Power reference: Isolated 12VDC internally provided (no external wiring is needed)

Minimum input voltage: 0VDC

Maximum Input voltage :12VDC

Input resistance: > 200k

Resolution: 8bits

Acquisition time: 160 ms
