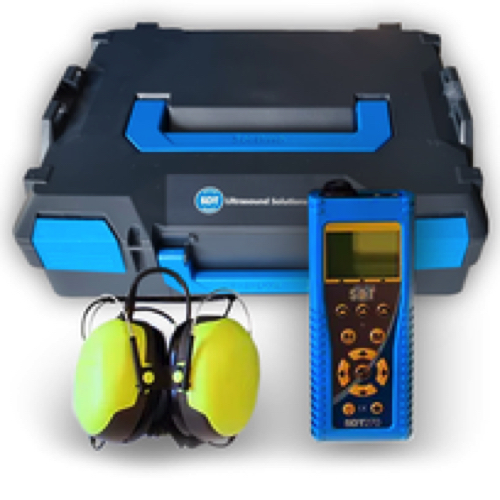

SDT SDT270 Ultrasound Detector (100 kHz)

Operable with: Provided sensors

Software compatibility: Ultranalysis Suite 3, DataDump, Versions: FUR270, FUR270A (ATEX)

ATEX marking: 0029 II(1) G Ex ia II C T3/T2 Ga

Input interface: 2 channels via 7 pole LEMO connector

Built-in sensors: Ultrasonic airborne sensor, Temperature sensor (optional), Tachometer (optional)

Display: Graphic LCD with backlighting (128 x 64 pixels)

Supported languages: Multilingual

IP rating: IP 30

Keyboard: 12 functions keys

Measuring frequency range: kHz Up to 100

Signal amplification: dB from 0 to +90 by step of +10

Typical measuring range: dB -13 to +99.9

Resolution digits: 0.1

Refresh RMS period time: ms 250

Raw sampling frequency: ksps 256

ADC Resolution:bits 16

Response time: ms < 10

Auto power down min: Customizable

Ethernet :10/100 Mbps (only on standard version,not available on ATEX version)

Dimensions mm (in) L x W x H : 226 x 90 x40 (8.9 x 3.5 x 1.6)

Weight: g (oz) 830 (29.3), battery and holster included

Audio connector : 6.5 mm jack
