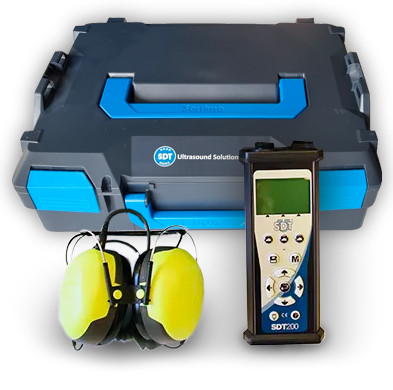

SDT SDT200 Ultrasound Detector (100 kHz)

Operable with: Provided sensors

Software compatibility: DataDump only / Versions FUR200, FUR200A (ATEX)

ATEX marking: 0029 II(1) G Ex ia II C T3/T2 Ga

Input interface: 1 channel via 7 pole LEMO connector

Built-in sensors: Ultrasonic airborne sensor/ Pyrometer sensor

Display: Graphic LCD with backlighting (128 x 64 pixels)

Support languages: Multilingual

Keyboard: 12 functions keys

Measuring frequency range: kHz Up to 100

Signal amplification: dB from 0 to +90 by step of +10

Typical measuring range: dB -13 to + 99.9

Resolution digits: 0.1

Refresh RMS period time: ms 250

Raw sampling frequency: ksps 256

ADC Resolution: bits 16

Response time: ms 10

Auto power down min: Customizable

Dimensions mm (in) L x W x H : 226 x 90 x40 (8.9 x 3.5 x 1.6)

Weight: g (oz) 770 (27), battery and holster included

Audio connector: 6.5 mm jack
