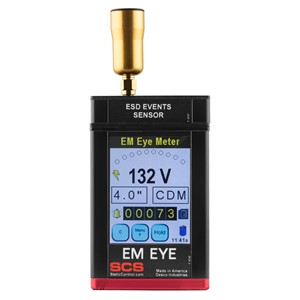

SCS 770715 - EM Eye ESD Event Meter

General

Audio Indicators

Speaker: Beep or analog audio with selectable volume

External Data Storage: microSD Card

Recording Interval:

Peaks: 1 to 360 seconds

Average signals: 0.1 to 360 seconds

Display: Touch LCD

Size: 65 W x 32 D x 105 L mm

Headphone Jack: 3.5 mm (1/8 in.)

Power Supply/Charger

Input: 100-240 VAC, 50-60 Hz

Output: 5.0V 1000mA

Plug: Center positive 1.3 mm I.D. x 3.5 mm O.D

Raw Input Resolution: 1 mV (1 mV to 15 mV); 15 mV (15 mV to 1500 mV)

Detection Resolution: 1 mV

Threshold (Display) Resolution: 1 to 10 V, 10 to 990 V

Raw input: 1 mV (1 to 15 mV) and 15 mV (15 to 1500 mV)

Distance Detection Range: 1.3 cm (0.5 in.) – 38.1 cm (15.0 in.)

Event Detection Rate: 3,000 per second

Counter Range: 0 to 32,767 counts (screen count)

Hardware Setup: Adjustable Brightness, Autooff-time CTC115 Remote

Antenna Temperature Range: -100 to 400° F (-73 to 204° C)
