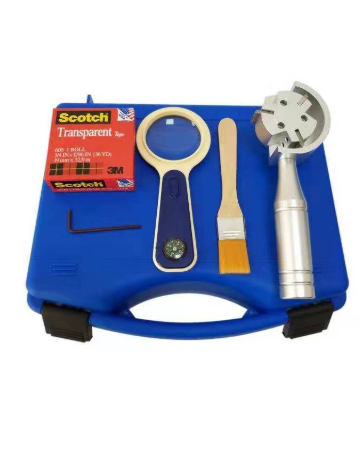

Scotch QFH-HG600A Adhesion Test Kit

Cutting blade spacing: 1 + 0.01mm, 2 + 0.01mm

Additional blade curvature: 0.003mm, 0.006mm

Tooth blade tip width: 0.05mm

Cutting blade spacing and blade types:

1mm and 2mm with 11 teeth

3mm with 6 teeth

Temperature: 23 ± 2°C

Relative humidity: 50 ± 5%

Multiblade cutting blade spacing: 1 + 0.01mm, 2 + 0.01mm, 3 + 0.01mm

Straightness of multiblade cutting blade tip: >0.003mm, >0.006mm

Working tip width of multiblade cutting blade: >0.05mm

Blade spacing and film thickness compatibility:

1mm blade: For film thickness ≤ 60µm

2mm blade: For film thickness ≤ 120µm

3mm blade: For film thickness ≥ 120µm
